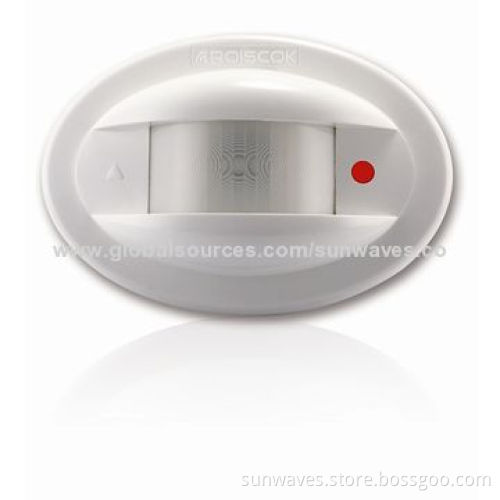

PIR Direction Curtain Detector, Can Accurately Distinguish Innovation Signal From False Trigger SignNew
  • PIR Direction Curtain Detector, Can Accurately Distinguish Innovation Signal From False Trigger SignNew
  • PIR Direction Curtain Detector, Can Accurately Distinguish Innovation Signal From False Trigger SignNew
PIR Direction Curtain Detector, Can Accurately Distinguish Innovation Signal From False Trigger SignNew
PIR Direction Curtain Detector, Can Accurately Distinguish Innovation Signal From False Trigger SignNew

PIR Direction Curtain Detector, Can Accurately Distinguish Innovation Signal From False Trigger SignNew

Get Latest Price
Payment Type:
T/T 10 Days in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T 10 Days in Advance
Product Description
Product Description
  • Features:
    • Dual-passive infrared detective technology
    • True temperature compensation
    • Dual-polarity pulse count adjustable
    • Can accurately distinguish the innovation signal from false trigger signal, do real-time analysis processing signal to reduce false alarm
    • Professional Fresnel optical lens, can improve the catching signal ability in scope
    • Can be set to bidirectional trigger
    • Detective range: 8 x 0.6m
    • Alarm output: NO/NC (optional)
    • Low-power consumption
  • Specifications:
    • Working voltage: 9-16V DC (12V DC recommended)
    • Working current: <30mA
    • Infrared sensor: dual-element
    • PIR viewing lens: professional Fresnel optical lens
    • Alarm output: NC, 100V DC/500mA/10VA (W) (maximum)
    • Tamper protection: NC, 24V AC/DC/500mA/maximum
    • Detectable speed: 0.3-3m/s
    • Detecting range: 8m x 0.6m
    • RFI characteristics: 22V/m, 10MHz-1GHz
    • Working temperature: -0-+50°C
    • Relative humidity: 595% RH
    • Size: 95 x 65 x 38mm
  • Dual-passive infrared detective technology
  • True temperature compensation
  • Dual-polarity pulse count adjustable
  • Can accurately distinguish the innovation signal from false trigger signal, do real-time analysis processing signal to reduce false alarm
  • Professional Fresnel optical lens, can improve the catching signal ability in scope
  • Can be set to bidirectional trigger
  • Detective range: 8 x 0.6m
  • Alarm output: NO/NC (optional)
  • Low-power consumption
  • Working voltage: 9-16V DC (12V DC recommended)
  • Working current: <30mA
  • Infrared sensor: dual-element
  • PIR viewing lens: professional Fresnel optical lens
  • Alarm output: NC, 100V DC/500mA/10VA (W) (maximum)
  • Tamper protection: NC, 24V AC/DC/500mA/maximum
  • Detectable speed: 0.3-3m/s
  • Detecting range: 8m x 0.6m
  • RFI characteristics: 22V/m, 10MHz-1GHz
  • Working temperature: -0-+50°C
  • Relative humidity: 595% RH
  • Size: 95 x 65 x 38mm
