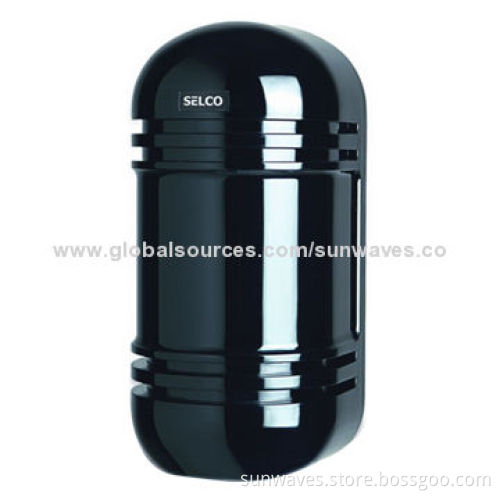

Twin Photoelectric Beam Sensor with Fresnel Optical Lens

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T 10 Days in Advance

Product Description

Selection of high-performance infrared

New parasitic light wave filtering face-piece, effectively filter out parasitic light interference

Optical axis can be adjusted all-round

Collimator with high-precision configuration, improves the calibration rate of the optical axis

LED status equipment, easy to install and detect

Protection range: 30/40/60/80/100m

Distance allowances: 350/450/650/900/1,100m

Detection system: alarm when 2 beams cut simultaneously

Response time range: 50-700ms

Operating voltage: 10.5-28V DC, (12V recommended)

Current consumption: 40mA

Optical axis horizontal adjusts: 180° (±90°)

Optical axis vertical adjusts: 20° (±10°)

Alarm output: relay contact output 1C, NC/no, contact rating AC, 30V DC, 0.5A

Temperature output: output 1B, contact rating 30V DC/0.5A

Collimator: view finder

Operating temperature: -25-55ºC, under 95% RH

Output dimensions (H x W x D): 171 x 82 x 77mm, details see figure 1

Transmitter: 280g

Receiver: 300g
