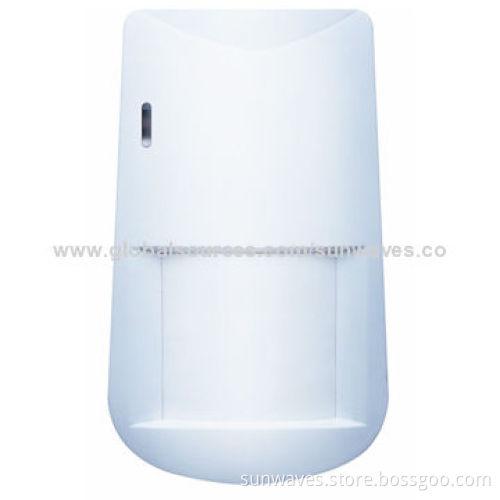

Triple Technology Detector with IRC Mode, Effectively Eliminate False Alarm, 6x6m Detective Range

Get Latest Price

Payment Type:: T/T 10 Days in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T 10 Days in Advance

Product Description

Main features:

Microwave, passive infrared and micro processor
Effectively eliminate of false positives and prevent interference with small animals
IRC mode, automatically converted to microwave/passive infrared dual-technology
When one of detect technology failure, can automatically converted to other one then continue to work
Ensure that the system is safe and reliable
AI micro processor control, built-in high-performance micro processor to monitor the working conditions detector
Adapt to temperature control circuit, automatically adjust detector gain by change the state of the environment, ensure the detector is always in the best job status
Uniform sensitivity of the optical system

Technical parameters:

Operating voltage: 7.5-16V DC, (12V recommended)
Infrared sensor: dual-element, microwave system
Optic zone: 27 optic zone Fresnel lens
Microwave center frequency: 10.525GHz
Detection sensitivity: IR, microwave stand alone continuous tuning
Detectable speed: 0.3-3m/second
Temperature compensation: digital temperature compensation circuit
Alarm output: NC/NO, disconnect alarm
Contact loading: 30V DC/150mA (maximum)
Tamper protections: NC/NO, 24V AC/500mA
Detection range: 6 x 6m
Light immunity: 10,000 Lux
RFI immunity range: 50V/m, 10-1,000MHz
Pet immune: under 15kg
Operating temperature: -25-55℃
Relative humidity range: 5-95% RH
Dimensions: 119 x 71 x 42mm

Microwave, passive infrared and micro processor

Effectively eliminate of false positives and prevent interference with small animals

IRC mode, automatically converted to microwave/passive infrared dual-technology

When one of detect technology failure, can automatically converted to other one then continue to work

Ensure that the system is safe and reliable

AI micro processor control, built-in high-performance micro processor to monitor the working conditions detector

Adapt to temperature control circuit, automatically adjust detector gain by change the state of the environment, ensure the detector is always in the best job status

Uniform sensitivity of the optical system

Operating voltage: 7.5-16V DC, (12V recommended)

Infrared sensor: dual-element, microwave system

Optic zone: 27 optic zone Fresnel lens

Microwave center frequency: 10.525GHz

Detection sensitivity: IR, microwave stand alone continuous tuning

Detectable speed: 0.3-3m/second

Temperature compensation: digital temperature compensation circuit

Alarm output: NC/NO, disconnect alarm

Contact loading: 30V DC/150mA (maximum)

Tamper protections: NC/NO, 24V AC/500mA

Detection range: 6 x 6m
