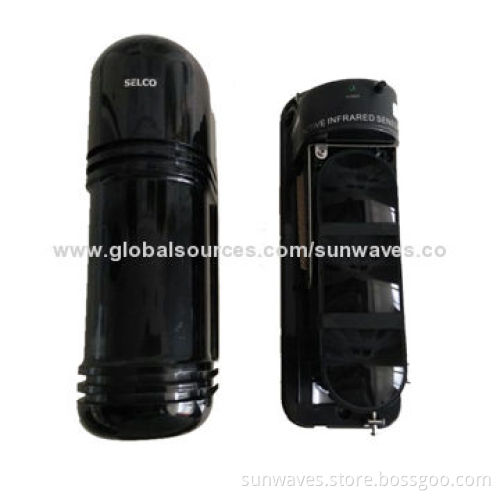

Selco Triple IR Beams Sensor with Fresnel Lens, 10.5-28V DC Operating Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T 10 Days in Advance

Product Description

Features:

Selection of high-performance infrared transmit/receive geminate transistors
New parasitic light wave filtering face-piece, effectively filters out parasitic light interference
Optical axis can be adjusted all-round
Collimator with high-precision configuration, improves the calibration rate of the optical axis
LED status equipment, easy to install and detect
Used in longer distance protection

Technical parameters:

Model number: SBM-50/-75/-100/-150
Protection range: 50/75/100/150m
Distance allowance: 1,000/1,500/2,000/3,000m
Detection system: alarm when 3 beams cut simultaneously
Response time range: 35-700ms
Operating voltage: 10.5-28V DC, (12V recommended)
Current consumption: 70/80/90/100mA (maximum)
Optical axis horizontal adjusts: 180° (±90°)
Optical axis vertical adjust: 16° (±8°)
Alarm output: relay contact output 1C, NC/NO, contact rating 30V AC/DC, 0.5A maximum
Tamper output: output 1B, contact rating 30V DC, 0.5A maximum
Collimator: view finder
Operating temperature: -25-55ºC, under 95% RH
Output dimensions (H x W x D): 270 x 90 x 90mm for details, see figure 3
Weight:
- Transmitter: 530g
- Receiver: 550g
