Dual Infrared Curtain Motion Detectors, 9-16V DC Working VoltageNew
  • Dual Infrared Curtain Motion Detectors, 9-16V DC Working VoltageNew
Dual Infrared Curtain Motion Detectors, 9-16V DC Working VoltageNew

Dual Infrared Curtain Motion Detectors, 9-16V DC Working VoltageNew

Get Latest Price
Payment Type:
T/T 10 Days in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T 10 Days in Advance
Product Description
Product Description

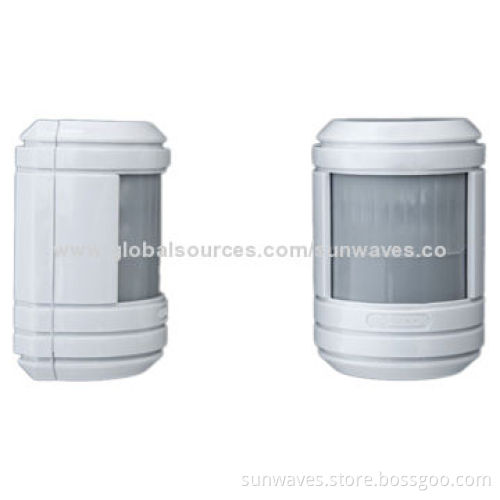

  • Model: SIR-308
  • Main features:
    • Dual-passive infrared detect technology
    • Bipolar pulse counting is adjustable
    • Professional Fresnel optical lens, improve the signal capture competence in detecting scope
    • True temperature compensation
    • Equip a set of special general usage bracket
    • For wall/corner installation
    • Graceful, good household ornament
  • Technical parameters:
    • Working voltage: 9-16V DC, (12V recommended)
    • Working current: <18mA
    • Infrared sensor: dual-element
    • PIR viewing lens: professional Fresnel optical lens
    • Detectable speed: 0.3-3m/second
    • Temperature compensation: true temperature compensation
    • Alarm output: NC, 100V DC/500mA, 10VA (W) maximum
    • Tamper protection: NC, 24V AC/DC/500mA maximum
    • Detecting range: 12x0.7m
    • Anti-RFI characteristics: 22V/m at 10MHz to 1GHz
    • Working temperature: -0 to 55°C
    • Relative humidity: 5-95% RH
    • Dimensions: 63x43x34mm
  • Dual-passive infrared detect technology
  • Bipolar pulse counting is adjustable
  • Professional Fresnel optical lens, improve the signal capture competence in detecting scope
  • True temperature compensation
  • Equip a set of special general usage bracket
  • For wall/corner installation
  • Graceful, good household ornament
  • Working voltage: 9-16V DC, (12V recommended)
  • Working current: <18mA
  • Infrared sensor: dual-element
  • PIR viewing lens: professional Fresnel optical lens
  • Detectable speed: 0.3-3m/second
  • Temperature compensation: true temperature compensation
  • Alarm output: NC, 100V DC/500mA, 10VA (W) maximum
  • Tamper protection: NC, 24V AC/DC/500mA maximum
  • Detecting range: 12x0.7m
  • Anti-RFI characteristics: 22V/m at 10MHz to 1GHz
  • Working temperature: -0 to 55°C
  • Relative humidity: 5-95% RH
  • Dimensions: 63x43x34mm
