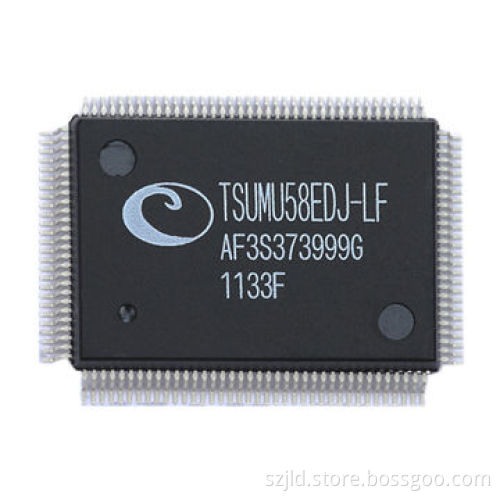

WUXGA LCD Controller with Dual Interface and Dual LVDS Transmitter Chips

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or B/L

Product Description

On-screen display controller (OSD)

Built-in OSD generator with 15.75K programmable RAM forcode/attribute/font

Supports 8 independent OSD window

OSD programmable font height

Internal OSD rotation degree of 90, 180 and 270

Supports 2/4/8 multiple color fonts

Supports 256 color palette

Gradient color function

Pattern generator for production test

Supports OSD MUX and alpha blending capability

Supports OSD gradient engine

Output display interface

Supports up to 8-bit LVDS/WUXGA (1920x1200) panelinterface

Spread spectrum output frequency for EMI suppression

PWM back-light intensity control

DPMS supported

Full green mode DPMS supported

Low standby current (<5mA)

Embedded MCU

8032 micro controller

ISP interface

UART interface

GPIO and PWM for system control

External connection/component

Built-in DDC circuit for analog input

DDC2B/2Bi/2B+/CI supported

Supports external serial flash

Misc

Advanced power management controller

100-PQFP package

3.3V suppliers with embedded 1.2V internal regulator
