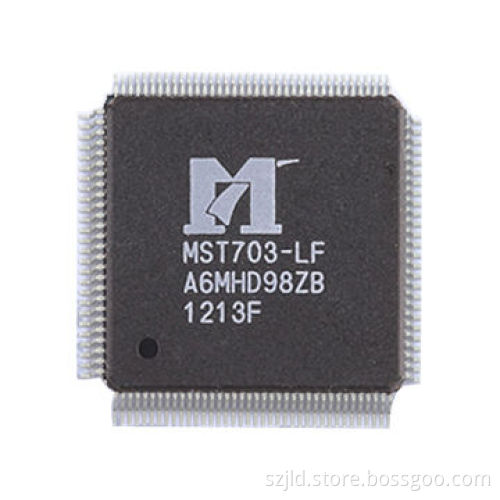

Small Size LCD TV Processor with Video Decoder Chip

Get Latest Price

Payment Type:: T/T or B/L

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or B/L

Product Description

Video decoder:

Supports NTSC, PAL and SECAM video input formats
2D NTSC and PAL comb-filter for Y/C separation of CVBSinput
Multiple CVBS and S-video inputs
ACC, AGC and DCGC (digital chrome gain control)

Analog input:

Supports RGB input format from PC, camcorders and GPS
Supports YCbCr input from conventional video source andHDTV
Supports video input of 480i, 480p, 576i, 576p, 720p, 1,080i,1,080p, RGB input resolution of 640 x 480, 800 x 480, 800 x 600,1024 x 768 and 1,280 x 1,024 pixels
3-ch 10 bits low-power ADC integration for YCbCr and RGB
Supports RGB composite synchronous input (CSYNC), SOY, SOG,HSYNC and VSYNC
Supports on-chip clock synthesizer and PLL
Auto-position adjustment, auto-phase adjustment and auto-modedetection

Color engine:

Brightness, contrast, saturation and hue adjustment
9-tap programmable multiple purposes FIR (finite impulseresponse) filter
Differential 3-band peaking engine
Luminance transient improvement (LTI)
Chrominance transient improvement (CTI)
Black level extension (BLE)
White level extension (WLE)
Favor color compensation (FCC)
3-ch gamma curve adjustment

Supports NTSC, PAL and SECAM video input formats

2D NTSC and PAL comb-filter for Y/C separation of CVBSinput

Multiple CVBS and S-video inputs

ACC, AGC and DCGC (digital chrome gain control)

Supports RGB input format from PC, camcorders and GPS

Supports YCbCr input from conventional video source andHDTV

Supports video input of 480i, 480p, 576i, 576p, 720p, 1,080i,1,080p, RGB input resolution of 640 x 480, 800 x 480, 800 x 600,1024 x 768 and 1,280 x 1,024 pixels

3-ch 10 bits low-power ADC integration for YCbCr and RGB

Supports RGB composite synchronous input (CSYNC), SOY, SOG,HSYNC and VSYNC

Supports on-chip clock synthesizer and PLL

Auto-position adjustment, auto-phase adjustment and auto-modedetection

Brightness, contrast, saturation and hue adjustment

9-tap programmable multiple purposes FIR (finite impulseresponse) filter

Differential 3-band peaking engine

Luminance transient improvement (LTI)

Chrominance transient improvement (CTI)

Black level extension (BLE)

White level extension (WLE)

Favor color compensation (FCC)
