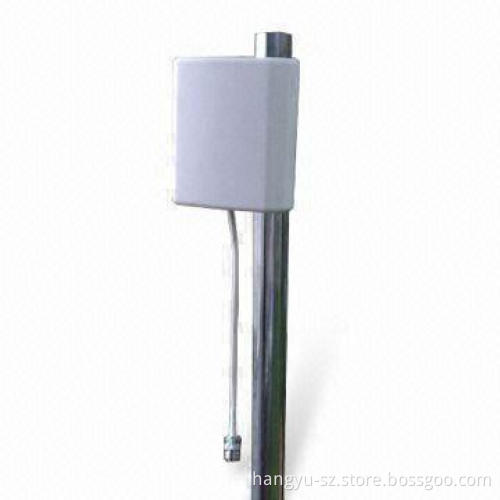

WLAN Antenna, 2,300 to 2,700MHz Frequency, 10dBi Gain, Wide Broadband, Compact Size/Light Structure
  • WLAN Antenna, 2,300 to 2,700MHz Frequency, 10dBi Gain, Wide Broadband, Compact Size/Light Structure
WLAN Antenna, 2,300 to 2,700MHz Frequency, 10dBi Gain, Wide Broadband, Compact Size/Light Structure

WLAN Antenna, 2,300 to 2,700MHz Frequency, 10dBi Gain, Wide Broadband, Compact Size/Light Structure

Get Latest Price
Payment Type:
T/T, Western Union and L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union and L/C at Sight
Product Description
Product Description
  • Specifications:
    • Frequency range: 2,300 to 2,700MHz
    • Bandwidth: 400MHz
    • Gain: 10dBi
    • VSWR: d1.5
    • Horizontal beam width: 60 degrees
    • Vertical beam width: 45 degrees
    • F/B ratio: e18dB
    • Nominal impedance: 50©
    • Polarization: vertical
    • Power: 50W (maximum)
    • Connector: N-K or customized
    • Antenna dimensions: 140 x 120 x 38mm
    • Weight: 0.25kg
    • Mounting: 40 to 50 degrees Celsius
    • Temperature: -40 to +60 degrees Celsius
    • Humidity: 5 to 95% RH
  • Frequency range: 2,300 to 2,700MHz
  • Bandwidth: 400MHz
  • Gain: 10dBi
  • VSWR: d1.5
  • Horizontal beam width: 60 degrees
  • Vertical beam width: 45 degrees
  • F/B ratio: e18dB
  • Nominal impedance: 50©
  • Polarization: vertical
  • Power: 50W (maximum)
  • Connector: N-K or customized
  • Antenna dimensions: 140 x 120 x 38mm
  • Weight: 0.25kg
  • Mounting: 40 to 50 degrees Celsius
  • Temperature: -40 to +60 degrees Celsius
  • Humidity: 5 to 95% RH
