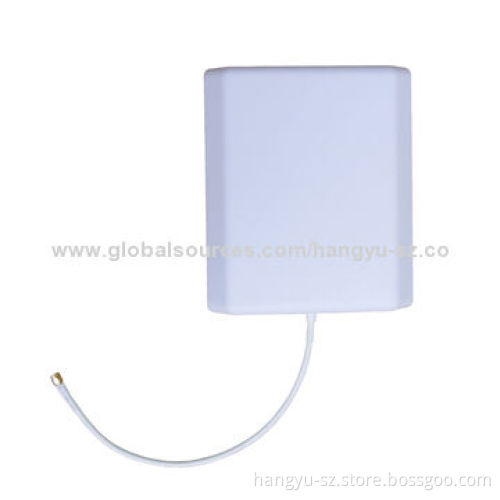

2.3-2.7GHz/12dBi Wall-mounted Antenna with 2,300-2,700MHz Frequency Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, L/C at Sight, PayPal

Product Description

Description:

With low-VSWR, wide broadband, compact size and lightweight structure which is easy to install
It is applied to 2.4GHz WLAN Wi-Fi system, MMDS system and wireless bridge

Specifications:

With low-VSWR, wide broadband, compact size and lightweight structure which is easy to install

It is applied to 2.4GHz WLAN Wi-Fi system, MMDS system and wireless bridge

Frequency range: 2,300-2,700MHz

Bandwidth: 400MHz

Gain: 12dBi

VSWR: ≤1.5

Beam width:

F/B ratio: ≥23dB

Nominal impedance: 50Ω

Polarization: vertical

Maximum power: 50W

Connector: SMA male or customized

Antenna dimensions: 210 x 180 x 45mm

Weight: 0.5kg

Pole dimensions: φ40-50mm

Temperatures: -40 to 60°C

Humidity range: 5-95% RH

Horizontal: 55°

Vertical: 32°
