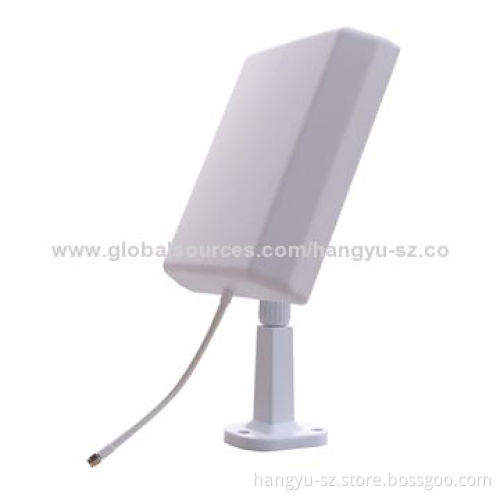

Wall Mount Antenna with 2.3 to 2.7GHz, 12dBi, Low-VSWR, Wide Broadband, Compact Size
  • Wall Mount Antenna with 2.3 to 2.7GHz, 12dBi, Low-VSWR, Wide Broadband, Compact Size
  • Wall Mount Antenna with 2.3 to 2.7GHz, 12dBi, Low-VSWR, Wide Broadband, Compact Size
Wall Mount Antenna with 2.3 to 2.7GHz, 12dBi, Low-VSWR, Wide Broadband, Compact Size
Wall Mount Antenna with 2.3 to 2.7GHz, 12dBi, Low-VSWR, Wide Broadband, Compact Size

Wall Mount Antenna with 2.3 to 2.7GHz, 12dBi, Low-VSWR, Wide Broadband, Compact Size

Get Latest Price
Payment Type:
TT, Western Union, L/C at Sight, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Western Union, L/C at Sight, PayPal
Product Description
Product Description
  • Description:
    • 2.3 to 2.7GHz wall mount antenna is low-VSWR, wide broadband, compact size and light structure which is easy to install
    • It is applied to 2.4GHz WLAN Wi-Fi, MMDS systems and wireless bridge
  • Specification:
    • Electrical:
      • Frequency range: 2,300 to 2,700MHz
      • Bandwidth: 400MHz
      • Gain: 12dBi
      • VSWR: ≤1.5
      • Horizontal beam width: 55°
      • Vertical beam width: 32°
      • F/B ratio: ≥23dB
      • Nominal impedance: 50Ω
      • Polarization: vertical or horizontal
      • Power: 50W (maximum)
      • Connector: SMA male or customized
    • Mechanical:
      • Antenna dimensions: 210 x 180 x 45mm
      • Weight: 0.4kg
      • Pole dimension: (D) 40 to 50mm
      • Temperature: 40 to 50°C
      • Humidity range: 5 to 95% RH
  • 2.3 to 2.7GHz wall mount antenna is low-VSWR, wide broadband, compact size and light structure which is easy to install
  • It is applied to 2.4GHz WLAN Wi-Fi, MMDS systems and wireless bridge
  • Electrical:
    • Frequency range: 2,300 to 2,700MHz
    • Bandwidth: 400MHz
    • Gain: 12dBi
    • VSWR: ≤1.5
    • Horizontal beam width: 55°
    • Vertical beam width: 32°
    • F/B ratio: ≥23dB
    • Nominal impedance: 50Ω
    • Polarization: vertical or horizontal
    • Power: 50W (maximum)
    • Connector: SMA male or customized
  • Mechanical:
    • Antenna dimensions: 210 x 180 x 45mm
    • Weight: 0.4kg
    • Pole dimension: (D) 40 to 50mm
    • Temperature: 40 to 50°C
    • Humidity range: 5 to 95% RH
  • Frequency range: 2,300 to 2,700MHz
  • Bandwidth: 400MHz
  • Gain: 12dBi
  • VSWR: ≤1.5
  • Horizontal beam width: 55°
  • Vertical beam width: 32°
  • F/B ratio: ≥23dB
  • Nominal impedance: 50Ω
  • Polarization: vertical or horizontal
  • Power: 50W (maximum)
  • Connector: SMA male or customized
  • Antenna dimensions: 210 x 180 x 45mm
  • Weight: 0.4kg
  • Pole dimension: (D) 40 to 50mm
  • Temperature: 40 to 50°C
  • Humidity range: 5 to 95% RH
