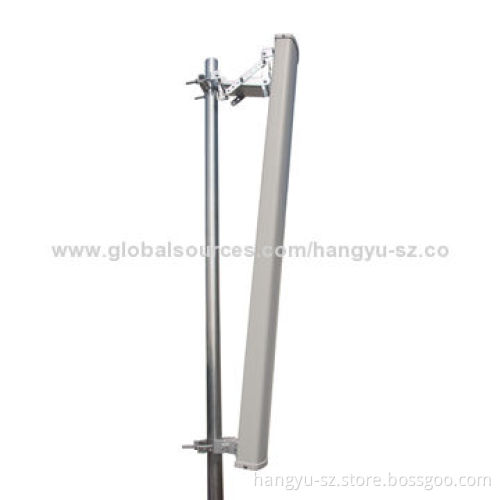

2.4GHz Dual-band Panel Antenna with 16dBi Gain

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or L/C at Sight

Product Description

Specification:

Applications:

Features:

Frequency range: 2,400 to 2,500MHz

Gain: 16dBi

Polarization: vertical

VSWR: ≤1.5

Horizontal beam width: 120°

Vertical beam width: 7°

F/B ratio: ≥25dB

Side-lobe suppression for first side-lobe above main beam: ≥15dB

Impedance: 50Ω

Maximum power capacity: 100W

Lighting protection: DC ground

Connector type: N-K

Antenna dimension: 1,160 x 132 x 62mm

Antenna weight: 3.3kg

Radome material and color: UPVC, light gray

Mechanical tilt: 15°

Pole diameter: Ø35 to 75mm

Rate wind velocity: 60mps

Operating temperature: -40 to 60°C

Humidity range: 5 to 95% RH

2.4GHz band

WLAN/Wi-Fi system/ISM band

Supports IEEE802.11b/g

Public hotspot, sector cover

Point to multiple points

120° cover

Dual-polarization

High-gain

Low-VSWR

Provides adjustable angle installation kits

Anti-aging PVC cover
