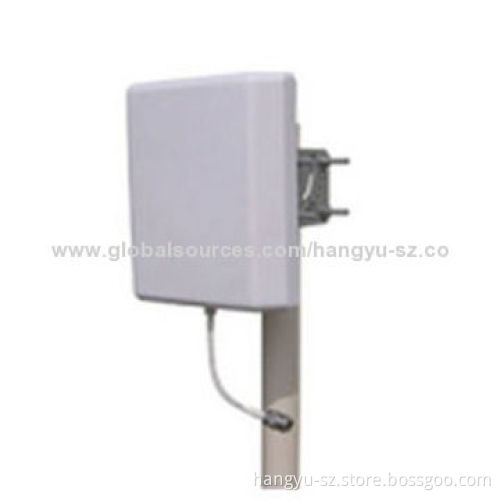

2.3 to 2.7GHz 12dBi Wall-mounted Antenna, Applied to 2.4GHz WLAN Wi-Fi System, MMDS System
  • 2.3 to 2.7GHz 12dBi Wall-mounted Antenna, Applied to 2.4GHz WLAN Wi-Fi System, MMDS System
2.3 to 2.7GHz 12dBi Wall-mounted Antenna, Applied to 2.4GHz WLAN Wi-Fi System, MMDS System

2.3 to 2.7GHz 12dBi Wall-mounted Antenna, Applied to 2.4GHz WLAN Wi-Fi System, MMDS System

Get Latest Price
Payment Type:
T/T, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, L/C at Sight
Product Description
Product Description
  • Specification:
    • Electrical:
      • Frequency range: 2,300 to 2,700MHz
      • Bandwidth: 400MHz
      • Gain: 12dBi
      • VSWR: ≤1.5
      • Beam width:
        • Horizontal: 55°
        • Vertical: 32°
      • F/B ratio: ≥18dB
      • Nominal impedance: 50Ω
      • Polarization: vertical
      • Maximum power: 50W
      • Connector: N female or customized
    • Mechanical:
      • Antenna dimension: 210 x 180 x 45mm
      • Weight: 0.62kg
      • Pole dimension: φ40 to 50mm
      • Temperature: -40 to 60°C
      • Humidity range: 5 to 95% RH
  • Electrical:
    • Frequency range: 2,300 to 2,700MHz
    • Bandwidth: 400MHz
    • Gain: 12dBi
    • VSWR: ≤1.5
    • Beam width:
      • Horizontal: 55°
      • Vertical: 32°
    • F/B ratio: ≥18dB
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: N female or customized
  • Mechanical:
    • Antenna dimension: 210 x 180 x 45mm
    • Weight: 0.62kg
    • Pole dimension: φ40 to 50mm
    • Temperature: -40 to 60°C
    • Humidity range: 5 to 95% RH
  • Frequency range: 2,300 to 2,700MHz
  • Bandwidth: 400MHz
  • Gain: 12dBi
  • VSWR: ≤1.5
  • Beam width:
    • Horizontal: 55°
    • Vertical: 32°
  • F/B ratio: ≥18dB
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: N female or customized
  • Horizontal: 55°
  • Vertical: 32°
  • Antenna dimension: 210 x 180 x 45mm
  • Weight: 0.62kg
  • Pole dimension: φ40 to 50mm
  • Temperature: -40 to 60°C
  • Humidity range: 5 to 95% RH
