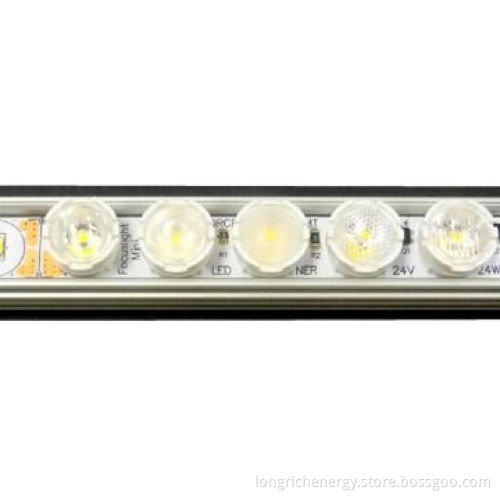

High CRI, 96 and lumen LED strips

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Specifications

Lenses available: 16°, 24°, 35°, 53° and 20 x 75°
Supply voltage: 24 volts DC + 20 or – 10%
Power consumption: 24W per meter
Length: 5m reel
Width: 12mm
Thickness: 2mm
Can be cut every 10cm
Flexible, can be curved into a radius higher than 5cm
Self-adhesive, a primer glue on the support may be necessary
Light flux:
- White 2,500°: 1,600lm/MCRI 80, white 3,000° 1,820lm/MCRI 81
- White 4,000°: 1,720lm/MCRI 83, white 6,000° 1,800 lm/MCRI 81
- Red: 630 lumens/M
- Green: 1120 lumens/M
- Blue: 310 lumens/M
- Amber: 290 lumens/M
No ultraviolet or infrared radiation in order to preserve the illuminated objects (no degradation of inks, paintings and objects) 60 2835 at 120mA very high efficiency LEDs per meter
Current and temperature regulators integrated on the strip: reliability guaranteed
Maximum strip length for a single power cable: 10 meters
Material: high quality KAPTON polyimide
Lifespan for at least 70% of the initial brightness: 50 000 hours
Suggested profiles: force profile range PRO221/231/241
Lexan caps CAP211/221/251 can be assembled with the lenses
Range of power supplies, dimmers, controllers are available
Supplied by 2 wires soldered on each side of the ribbon
CE marking/ETL Listed USA and Canada N°4007092

Usages:

Cornices lighting
Veranda lighting and decoration, directly bonded on profiles
Integration in fixtures
Shop shelves lighting and decoration
Perfect to use as wall washer to project the light
Museums: possibility of accentuation, thanks to the lenses

Lenses available: 16°, 24°, 35°, 53° and 20 x 75°

Supply voltage: 24 volts DC + 20 or – 10%

Power consumption: 24W per meter

Length: 5m reel

Width: 12mm

Thickness: 2mm

Can be cut every 10cm

Flexible, can be curved into a radius higher than 5cm

Self-adhesive, a primer glue on the support may be necessary

Light flux:

White 2,500°: 1,600lm/MCRI 80, white 3,000° 1,820lm/MCRI 81
White 4,000°: 1,720lm/MCRI 83, white 6,000° 1,800 lm/MCRI 81
Red: 630 lumens/M
Green: 1120 lumens/M
Blue: 310 lumens/M
Amber: 290 lumens/M

No ultraviolet or infrared radiation in order to preserve the illuminated objects (no degradation of inks, paintings and objects) 60 2835 at 120mA very high efficiency LEDs per meter

Current and temperature regulators integrated on the strip: reliability guaranteed

Maximum strip length for a single power cable: 10 meters

Material: high quality KAPTON polyimide

Lifespan for at least 70% of the initial brightness: 50 000 hours

Suggested profiles: force profile range PRO221/231/241

Lexan caps CAP211/221/251 can be assembled with the lenses

Range of power supplies, dimmers, controllers are available

Supplied by 2 wires soldered on each side of the ribbon

CE marking/ETL Listed USA and Canada N°4007092

White 2,500°: 1,600lm/MCRI 80, white 3,000° 1,820lm/MCRI 81

White 4,000°: 1,720lm/MCRI 83, white 6,000° 1,800 lm/MCRI 81

Red: 630 lumens/M
