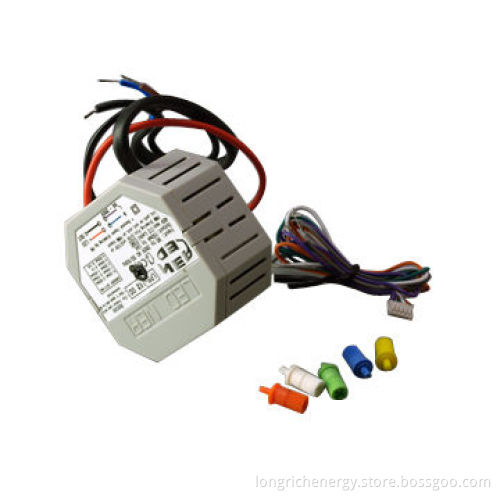

12W Constant Current Dimmable LED Power Supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Input specifications: 90 to 260V AC/0.1A

Continuous power recommended: 12W

Output specifications: 2 to 48V/0.15 to 1.4A

Adjustable current in 10 steps: 150mA, 250mA, 350mA, 425mA, 500mA, 600mA, 700mA, 850mA, 1A, 1.4A

Thermal protection

Dimming by pulse width modulation(PWM) for a perfect LED dimming

Minimum PWM ratio: 1% high frequency

Control voltage of the dimming with potentiometer inter- nal, external, entry 0/5V or 0/10V

Temporary dimming with push-button

Cycle time min/max: 3sec, increment and decrement by pressing the button

Temporary dimming via push button can also work in PWM mode

PWM input and output compatible with EPWM to control more powerful power supplies

Cable lengths: power cable 18cm, signals 30cm

Case materials: PC + ABS

CE marking
