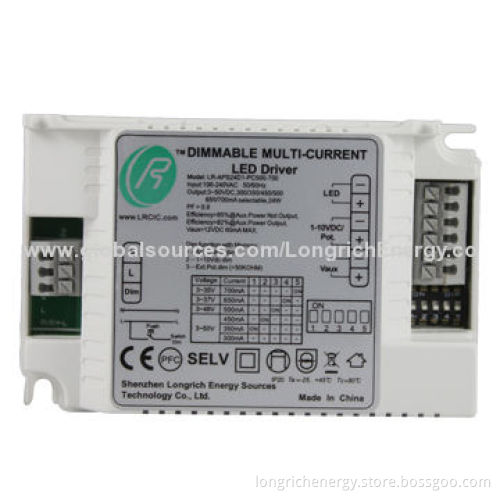

1-10V Constant Current LED Driver, 3 to 50V DC Output Voltage

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Dimmable constant current LED driver for LEDs application with multi-current (300, 350, 450, 500, 650 and 700mA) selection function via dip switch

Can vary light intensity of LEDs load by means of 1 to 10V control signal, potentiometer, 1 to 10V DC rotary dimmer and AC switch which can be modified to open push button

Wide range of output voltage, 3 to 50V DC

Can power 1 to 14-piece 1W high-power LED or 1 to 8-piece 3W high-power LED, also suitable for COB and LED strip

Universal input voltage: 90 to 264V AC, 50/60Hz

Built-in active PFC

High-efficiency, up to 85%

Protection: short-circuit with hiccup mode, overload

Natural air convection

Class II, no FG

Plastic case, IP20 for indoor use only

Optional multi-dim function, suitable for LED lighting applications

High-current accuracy to make LED lifetime longer

Function: 100 to 240V AC switch dim

On/off: short push (50 to 500ms) on switch

Stepless dimming: long push and hold (>500ms) on switch

For tuning of light level: with every 2nd long push, light level goes opposite direction

Built-in with permanent memory

Synchronization: no limitation on number of drivers when connected to same switch

2.1 to 10V DC dimmer

1 to 10V DC dimmer and ext potentiometer dimmer

Multi-current set

300, 450, 500, 650, 700mA select, set DIP switch

Memory functions: power offer memory function to memorize light intensity, soft light on to memorized intensity, nice to eyes

Dim range and effect: 0.3 to 100% stepless dim to make light intensity vary smoothly, no flickering
