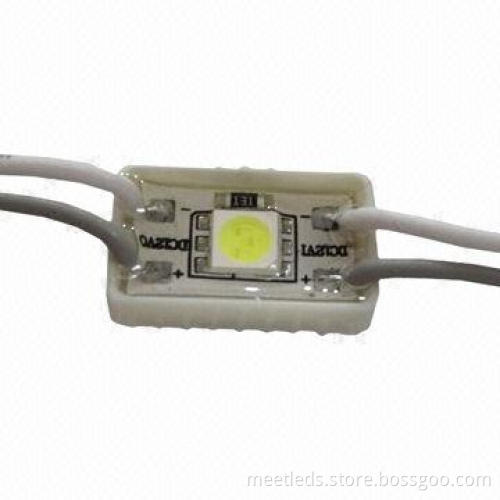

SMD5050 Waterproof LED Module Light, White Color with 3-year Warranty

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Features:

Applications:

Small stroke signage, resin plastic letters, resin metal letters, resin acrylic letters and resin LED channel letters

Operating voltage: 12V DC

Power consumption: 0.24W/PCs

Dimensions: 20 x 12mm

LED type: Epistar tri chip SMD 5,050

Number of LEDs in unit: 1 LEDs

Luminous flux range per meters: 20-22lm

CRI: 75Ra

Colors available: pure white/nature white/warm white/red/green/blue/yellow

Beam angle: 120°

Driven mode: constant voltage

Water resistance: waterproof IP65

Operating temperatures: -40-70°C

Widely used in resin channel letters, numbers and signage which depth 8-10mm

Adopts 1pc Epistar single chip SMD5050, 20-22 luminous per chips

Double FR-4 fiberglass panels provide a good heat dissipation

10cm gray (positive) and white (negative) wire between every two modules

Waterproof class can be reach IP65, you can use it outdoor

20pcs per string, each module can be cut individually

50,000 hours long lifespan

Small stroke signage, resin plastic letters, resin metal letters, resin acrylic letters and resin LED channel letters
