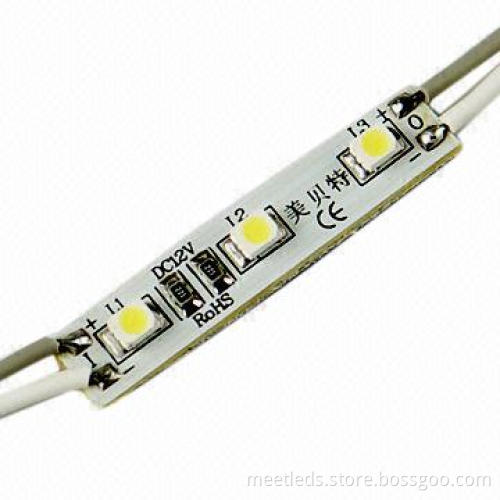

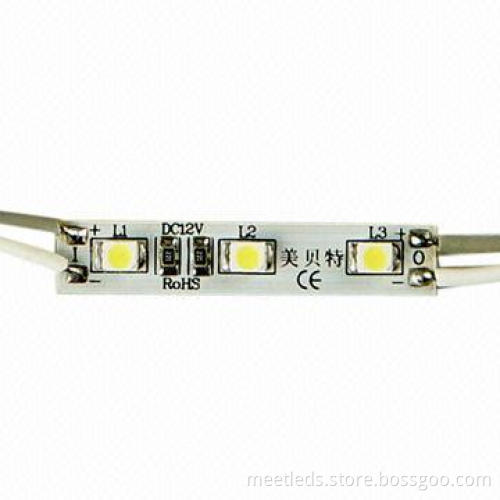

36*7mm 12V 0.24W Three Single Chip SMD3528 Mini LED Module for Mini Channel Letter Signage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Operating voltage: 12V DC

Power consumption: 0.24W/pcs

Dimensions: 35 * 7mm

LED type: Epistar single chip SMD 3528

Number of per meters: 3 LEDs

Luminous flux per meters: 21 to 24lm

CRI (Ra): 75

Colors available: pure white/nature white/warmwhite/red/green/blue/yellow

Beam angle: 120°

Driven mode: constant voltage

Water resistance: non-waterproof

Operating temperature: -40 to 70°C

Features:

8 to 10mm depth

Adopts 3pcs Epistar single chip SMD3528, 7 to 8 luminous perchips

Double RF4 fiberglass panels provide a good heatdissipation

Silicone wire between every two modules, 0.25cm, 3cm, 4cmlength you can be chose

20pcs per string, cuttable by every 1 modules

50,000 hours long lifespan

Applications:

Small stroke signage, mini plastic letters, mini metal letters,mini acrylic letters, mini LED channel letters
