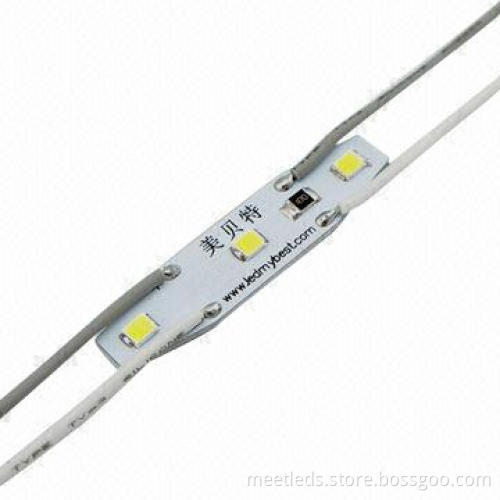

Diamond Three Single Chip SMD2835 Resin LED Module for Resin Channel Letter Signage
  • Diamond Three Single Chip SMD2835 Resin LED Module for Resin Channel Letter Signage
Diamond Three Single Chip SMD2835 Resin LED Module for Resin Channel Letter Signage

Diamond Three Single Chip SMD2835 Resin LED Module for Resin Channel Letter Signage

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Operating voltage: 12V DC
    • Power consumption: 0.72W/piece
    • Dimensions: 43 * 10mm
    • LED type: Epistar single chip 2835 SMD
    • Number of LEDs in unit: 3 LEDs
    • Luminous flux per meter: 66-75lm
    • CRI: 75Ra
    • Color available: pure white/nature white/warmwhite/red/green/blue/yellow
    • Beam angle: 120°
    • Driven mode: constant voltage
    • Water resistance: non-waterproof
    • Operating temperatures: -40-70
  • Features:
    • Can be bent arbitrary, widely use for indoor resin letters,numbers and signage which depth 10-25mm
    • Adopts 3 pieces Epistar single chip 2835 SMD, 22-25lm perchip
    • Aluminum plate provide a great heat dissipation
    • Silicone wire between every two modules, 0.25, 3, 4cm lengthyou can be chose
    • 20 pieces per string, cuttable by every 1 module
    • 50,000 hours long lifespan
  • Applications: small stroke signage, resin plastic letters,resin metal letters, resin acrylic letters, resin LED channelletters
  • Operating voltage: 12V DC
  • Power consumption: 0.72W/piece
  • Dimensions: 43 * 10mm
  • LED type: Epistar single chip 2835 SMD
  • Number of LEDs in unit: 3 LEDs
  • Luminous flux per meter: 66-75lm
  • CRI: 75Ra
  • Color available: pure white/nature white/warmwhite/red/green/blue/yellow
  • Beam angle: 120°
  • Driven mode: constant voltage
  • Water resistance: non-waterproof
  • Operating temperatures: -40-70
  • Can be bent arbitrary, widely use for indoor resin letters,numbers and signage which depth 10-25mm
  • Adopts 3 pieces Epistar single chip 2835 SMD, 22-25lm perchip
  • Aluminum plate provide a great heat dissipation
  • Silicone wire between every two modules, 0.25, 3, 4cm lengthyou can be chose
  • 20 pieces per string, cuttable by every 1 module
  • 50,000 hours long lifespan
