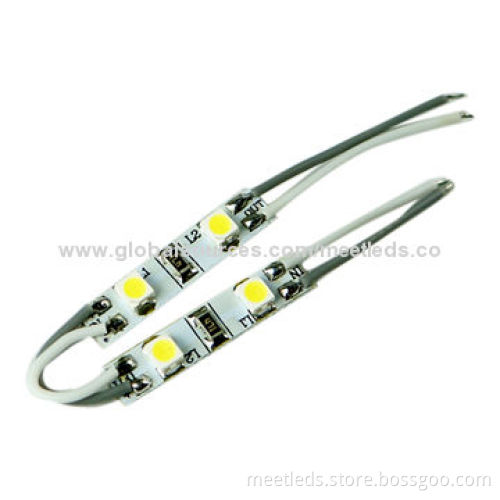

Rectangle LED Backlight Module with 2 x 3528 SMD 24 x 5mm Double FR-4 Fiberglass Panels
  • Rectangle LED Backlight Module with 2 x 3528 SMD 24 x 5mm Double FR-4 Fiberglass Panels
  • Rectangle LED Backlight Module with 2 x 3528 SMD 24 x 5mm Double FR-4 Fiberglass Panels
Rectangle LED Backlight Module with 2 x 3528 SMD 24 x 5mm Double FR-4 Fiberglass Panels
Rectangle LED Backlight Module with 2 x 3528 SMD 24 x 5mm Double FR-4 Fiberglass Panels

Rectangle LED Backlight Module with 2 x 3528 SMD 24 x 5mm Double FR-4 Fiberglass Panels

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Operating voltage: 12V DC
    • Power consumption: 0.24W/piece
    • Dimensions: 24*5mm
    • LED type: Epistar single chip 3528 SMD
    • Number of LEDs in unit: 2 LEDs
    • Luminous flux: 14-16lm
    • CRI: ≥75Ra
    • Color available: cool white/pure white/natural white/warm white/red/green/blue/yellow
    • Beam angle: 120°
    • Driven mode: constant voltage
    • Water-resistance: non-waterproof
    • Operating temperature: 40 to 70°C
  • Features:
    • Can be bent arbitrary, widely Use for indoor mini letters, numbers and signage which depth 5-8mm
    • Adopts 2 pieces Epistar single chip 3528 SMD, 7-8lm/chip
    • Double FR-4 fiberglass panels: provides a good heat dissipation
    • Silicon wire: between every two modules, 0.25/3/4cm length you can chose
    • 20 pieces/string, cuttable by every 1 module
    • 50,000 hours long lifespan
  • Applications:
    • Small stroke signage, mini plastic letters, mini metal letters, mini acrylic letters, mini LED channel letters
  • Operating voltage: 12V DC
  • Power consumption: 0.24W/piece
  • Dimensions: 24*5mm
  • LED type: Epistar single chip 3528 SMD
  • Number of LEDs in unit: 2 LEDs
  • Luminous flux: 14-16lm
  • CRI: ≥75Ra
  • Color available: cool white/pure white/natural white/warm white/red/green/blue/yellow
  • Beam angle: 120°
  • Driven mode: constant voltage
  • Water-resistance: non-waterproof
  • Operating temperature: 40 to 70°C
  • Can be bent arbitrary, widely Use for indoor mini letters, numbers and signage which depth 5-8mm
  • Adopts 2 pieces Epistar single chip 3528 SMD, 7-8lm/chip
  • Double FR-4 fiberglass panels: provides a good heat dissipation
  • Silicon wire: between every two modules, 0.25/3/4cm length you can chose
  • 20 pieces/string, cuttable by every 1 module
  • 50,000 hours long lifespan
  • Small stroke signage, mini plastic letters, mini metal letters, mini acrylic letters, mini LED channel letters
