4pcs SMD5730 Cree Waterproof IP65 Square LED Injection Module Lights with 3-year Warranty

4pcs SMD5730 Cree Waterproof IP65 Square LED Injection Module Lights with 3-year Warranty

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Operating voltage: 12V DC
Power consumption: 3W
Dimensions: 39 x 39mm
LED type: single chip 5730 SMD
Luminous flux per meters: 220-240lm
CRI: 75Ra
Colors: pure white/natural white/warm white/red/green/blue/yellow
Beam angle: 120°
Driven mode: constant voltage
IP Rating: IP 65
Operating temperatures: -40 to 70°C

Features:

Widely used in channel letters, numbers and signage which suitable for 15-28mm depth signage
Uses completed through injection in one time
Comprehensive performance is good with excellent electrical performance
Impact strength and wear resistance, chemical resistance, moisture content, shaping and excellent machining technology
Adapts PVC material at its shell

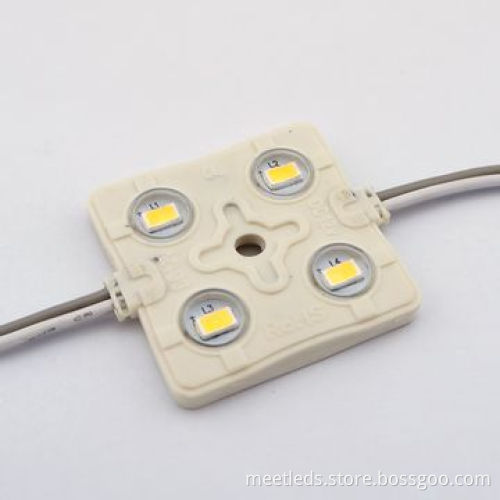

4 pieces of 5730 SMD LEDs chip light source
No light spot, low decay and good consistency

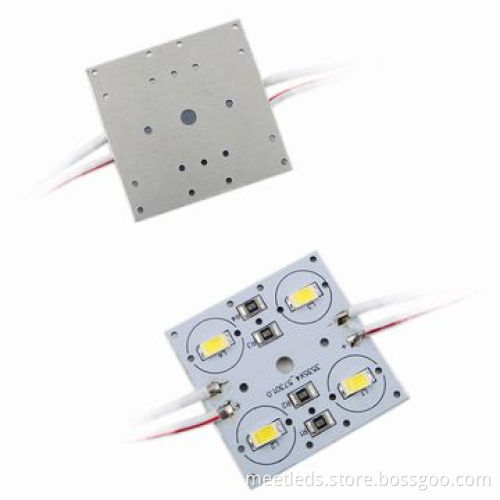

Aluminum panels provide a good heat dissipation
10cm gray (positive) and white (negative) wire between every two modules
Waterproof class can be reach IP65
Long lifespan over 50,000 hours

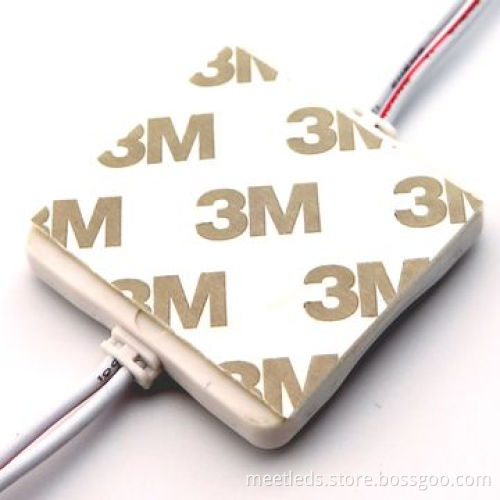

Two mounting hole and 3m tape attached back of modules makes installation easy
20 pieces per string, each module can be cut individually
Attention: please do not install it in totally exposed outdoor environment

Applications:

Blister characters, metal characters lights, channel letters, black and white boards, lighting boxes, display case, shadow boxes, vending machines and under cabinets

Operating voltage: 12V DC

Power consumption: 3W

Dimensions: 39 x 39mm

LED type: single chip 5730 SMD

Luminous flux per meters: 220-240lm

CRI: 75Ra

Colors: pure white/natural white/warm white/red/green/blue/yellow

Beam angle: 120°

Driven mode: constant voltage

IP Rating: IP 65

Operating temperatures: -40 to 70°C

Widely used in channel letters, numbers and signage which suitable for 15-28mm depth signage

Uses completed through injection in one time

Comprehensive performance is good with excellent electrical performance

Impact strength and wear resistance, chemical resistance, moisture content, shaping and excellent machining technology

Adapts PVC material at its shell

4 pieces of 5730 SMD LEDs chip light source

No light spot, low decay and good consistency

Aluminum panels provide a good heat dissipation

10cm gray (positive) and white (negative) wire between every two modules

Waterproof class can be reach IP65

Long lifespan over 50,000 hours

Two mounting hole and 3m tape attached back of modules makes installation easy

20 pieces per string, each module can be cut individually

Attention: please do not install it in totally exposed outdoor environment

Blister characters, metal characters lights, channel letters, black and white boards, lighting boxes, display case, shadow boxes, vending machines and under cabinets
