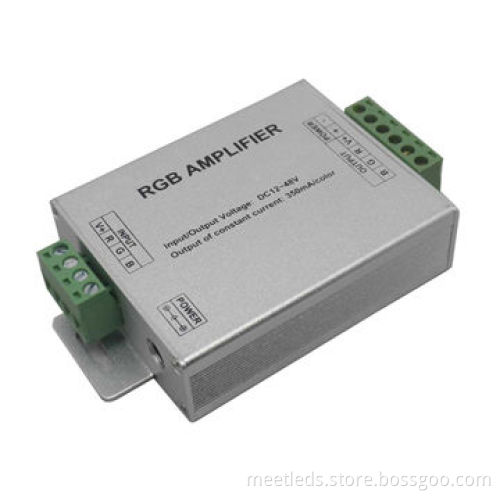

12-48V DC 350mA Constant Current RGB Amplifier

12-48V DC 350mA Constant Current RGB Amplifier

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Model: MT-ZJFJ-350mA-3CH-LV
Working temperatures: -20-60℃
Supply voltages: DC 12V~48V
Output: 3 channels
Connection mode: common anode
External dimension: 105 x 65 x 25mm
Packing size: 122 x 85 x 42mm
Net weight: 115g
Gross weight: 145g
Static power consumption: <1W
Output current:<350mA (each channel, specify the required voltage on order form)
Output power: 12V:<12.6W, 48V:<50.4W

Features

RGB amplifier applies to all the voltage-controlled LED controller in our company
It can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of LED will be more than twice, in theory, numerous RGB amplifiers can be connected

Model: MT-ZJFJ-350mA-3CH-LV

Working temperatures: -20-60℃

Supply voltages: DC 12V~48V

Output: 3 channels

Connection mode: common anode

External dimension: 105 x 65 x 25mm

Packing size: 122 x 85 x 42mm

Net weight: 115g

Gross weight: 145g

Static power consumption: <1W

Output current:<350mA (each channel, specify the required voltage on order form)

Output power: 12V:<12.6W, 48V:<50.4W

RGB amplifier applies to all the voltage-controlled LED controller in our company

It can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of LED will be more than twice, in theory, numerous RGB amplifiers can be connected
