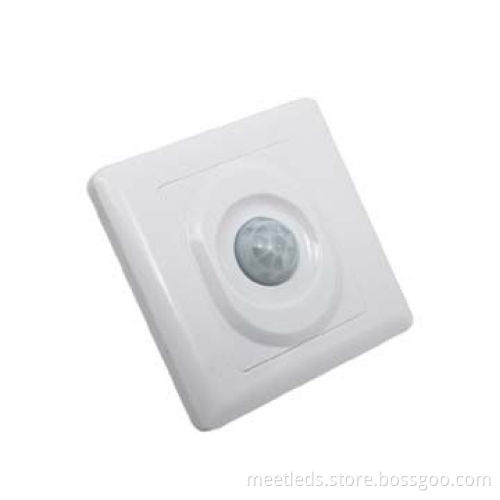

DC 5V, 12V, 24V 8amp Panel Human Induction Controller

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Model: MT-CON-MPIR-1CH-LV
Working temperatures: -20-60 ℃
Supply voltage: DC 5V, 12V, 24V can choose (specify the required voltage on orders)
Output: 1 channel
Sensing distance: 5～8m
Detection angle: 60 degree
External dimension: 86 x 86 x 26 mm
Packing size: 160 x 95 x 51mm
Net weight: 60g
Gross weight: 100g
Static power consumption: <1W
Output current: <8A
Output power: 5V:<40 W, 12V:< 96W, 24V:<192 W

Features

The human body induction switch is an infrared detection controller, using infrared detection way to control load switch
Users can according to actual requirement, install the human body induction switch in suitable environment

Direction for use:

Connect the load wire at first, following by the power wire
Please ensure short circuit can not occur between connecting wire before you turn on the power
Light load lamp when detect somebody, then when people leave after 10 seconds, the load lamp will off automatically
The controller signal output line and input line should be connected correctly

Model: MT-CON-MPIR-1CH-LV

Working temperatures: -20-60 ℃

Supply voltage: DC 5V, 12V, 24V can choose (specify the required voltage on orders)

Output: 1 channel

Sensing distance: 5～8m

Detection angle: 60 degree

External dimension: 86 x 86 x 26 mm

Packing size: 160 x 95 x 51mm

Net weight: 60g

Gross weight: 100g

Static power consumption: <1W

Output current: <8A
