5-24V DC 6A Wireless Mini Dimmer with 11 Keys

5-24V DC 6A Wireless Mini Dimmer with 11 Keys

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Model: MT-RF101
Working temperatures: -20-60℃
Supply voltages: DC 5-24V
Output: 1 channel

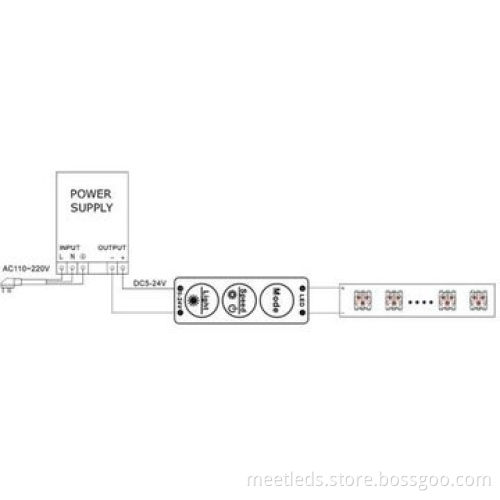

Connection mode: common anode
Controller dimension: 35.0 x 15.0 x 4.5mm

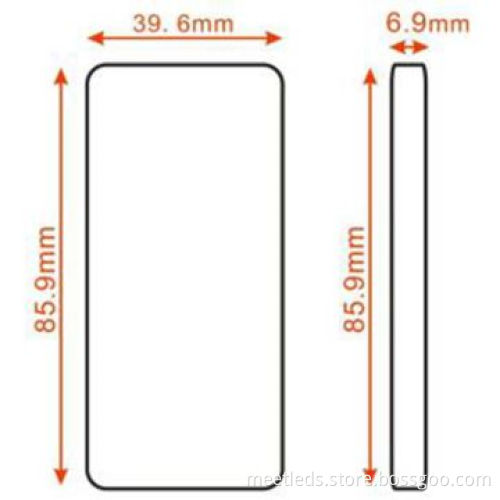

Remoter dimension: 85.9 x 39.6 x 6.9mm
Packing size: 123.0 x 90.0 x 13.0mm
Net weight: 35g
Gross weight: 40g
Static power: <0.5W
Output current: <6A
Output power: 5V<30W, 12V < 72W, 24V <144W

Features

RF controller adopts the advanced micro control unit, with 433MHz wireless signal to do the controlling. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on
It has many advantages such as low price, easy connection, simplicity to use and others
According to the customers’ needs, it can realize ten levels brightness adjustment, eight monochromatic dynamic models, and also can realize quick flash, breathing, fadein dimming, strobe, flicker and other kinds of model, with ten levels speed adjustment, large speed span
It is easy to take, simple to use

Model: MT-RF101

Working temperatures: -20-60℃

Supply voltages: DC 5-24V

Output: 1 channel

Connection mode: common anode

Controller dimension: 35.0 x 15.0 x 4.5mm

Remoter dimension: 85.9 x 39.6 x 6.9mm

Packing size: 123.0 x 90.0 x 13.0mm

Net weight: 35g

Gross weight: 40g

Static power: <0.5W

Output current: <6A

Output power: 5V<30W, 12V < 72W, 24V <144W

RF controller adopts the advanced micro control unit, with 433MHz wireless signal to do the controlling. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on

It has many advantages such as low price, easy connection, simplicity to use and others

According to the customers’ needs, it can realize ten levels brightness adjustment, eight monochromatic dynamic models, and also can realize quick flash, breathing, fadein dimming, strobe, flicker and other kinds of model, with ten levels speed adjustment, large speed span

It is easy to take, simple to use
