12-24V DC 10Amp Single Color Touch Controller (Aluminum Version)

12-24V DC 10Amp Single Color Touch Controller (Aluminum Version)

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Model: MT-RF303
Controller
Working temperatures: -20-60℃
Supply voltages: DC 12V-24V
Output: 1 channel
Connection mode: common anode

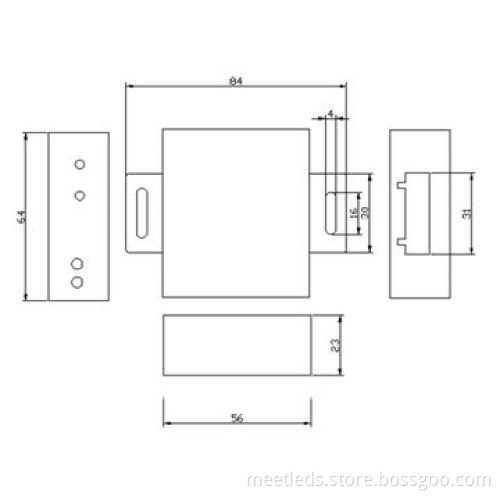

External dimension: 84 x 64 x 23mm
Packing size: 200 x 146 x 36mm
Net weight: 75g
Gross weight: 197g
Static power consumption: <1W
Output current: <10A
Output power: 12V: <120W, 24V:<240W

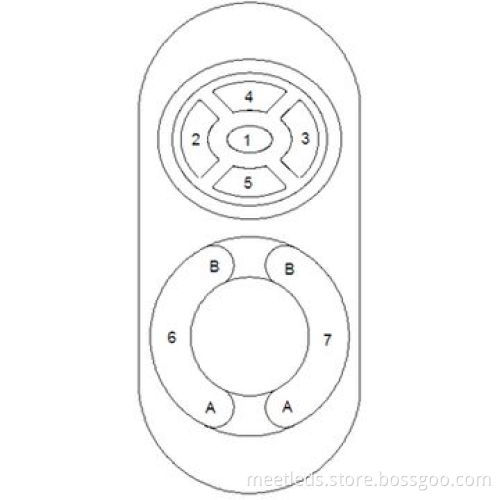

Touch remote control
Power supply mode: AAA * 3
Supply voltage: 1.5V * 3
Transmission frequency: 433.92Mhz
Standby power consumption: 0.015mW
Standby current: 3uA
Working current: 200uA
Emission current: 10mA
Remote distance: about 30m
Standby time: 6 months
Remote control weight: 85g

Features

Five key touch controller is wireless small volume controller which newly introduced by our company, touch remote control adopts high precision capacitance touch control technology, you can select the color temperature proportion and brightness you need by one button. It is convenient and easy
It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light
It has many advantages such as convenient to connect, easy to use and others

Model: MT-RF303

Controller

Working temperatures: -20-60℃

Supply voltages: DC 12V-24V

Output: 1 channel

Connection mode: common anode

External dimension: 84 x 64 x 23mm

Packing size: 200 x 146 x 36mm

Net weight: 75g

Gross weight: 197g

Static power consumption: <1W

Output current: <10A

Output power: 12V: <120W, 24V:<240W

Touch remote control

Power supply mode: AAA * 3

Supply voltage: 1.5V * 3

Transmission frequency: 433.92Mhz

Standby power consumption: 0.015mW

Standby current: 3uA

Working current: 200uA

Emission current: 10mA

Remote distance: about 30m

Standby time: 6 months

Remote control weight: 85g

Five key touch controller is wireless small volume controller which newly introduced by our company, touch remote control adopts high precision capacitance touch control technology, you can select the color temperature proportion and brightness you need by one button. It is convenient and easy

It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light

It has many advantages such as convenient to connect, easy to use and others
