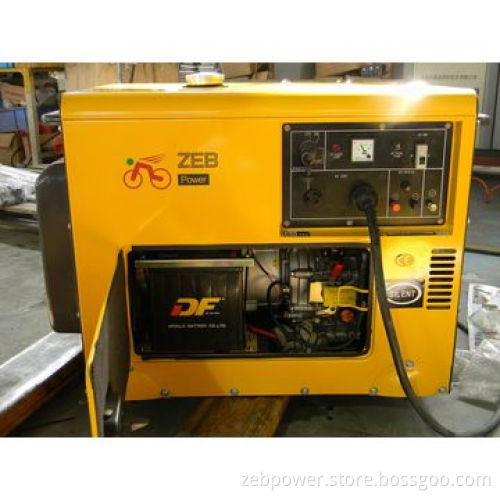

Portable diesel generator with quick delivery and small MOQ

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Portable diesel generators power cover range: 1.5 to 11.5KVA

Configuration as: 50/60Hz, single/3phase

Structure: Open type/silent type

MOQ: 20 set

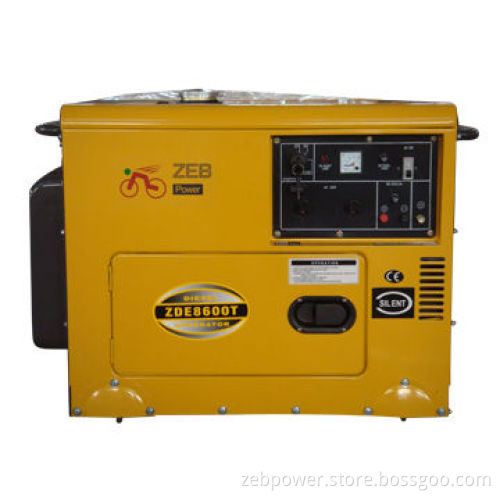

Model: ZDE8600T

Frequency range (Hz): 50/60

Output power (KVA) 6/50hz 6.5/60hz

Max. power range (KVA) 6.5/50 7/60hz

Voltages: 115/230 120/240

Current range (A): 52.1/26.1 54.1/27.1

Engine speed (r/min) 3,000/ 3,600

Phase single

Power factor (cosφ) 1

Excitation system self-excited constant voltage

Noise level (7m) DB (A): 72

Fuel tank capacity (L): 15

Structure silent type

Panel ordinary

Output socket: two

DC12V output terminal post

Bore*stroke (mm): 88 *75

Displacement (L) :0.456

Power range (KW): 7.5/3,000 8.2/3,600

Fuel consumption rate (g. KW/h): 290/50, 295/60hz

Compression ratio 19

Lubrication system: Spring

Engine starting system: Electric starter

Diesel oil model summer: 0#, winter: -10#

Lube oil model SAE10W-30 (above CD grade)

Lube oil capacity (L): 1.65

Battery capacity (V-AH): 12V-36Ah

Net weight (kg): 175

Dimension (L*W*H): 970*560*770
