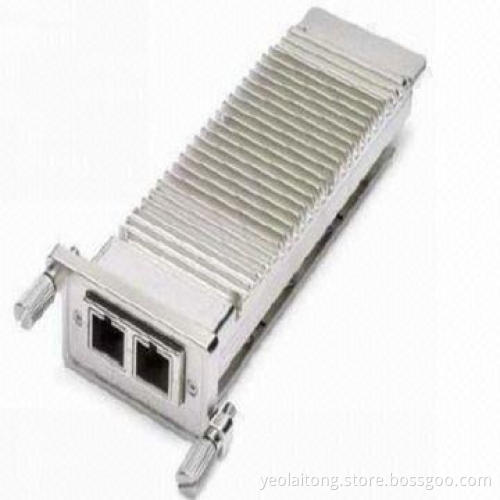

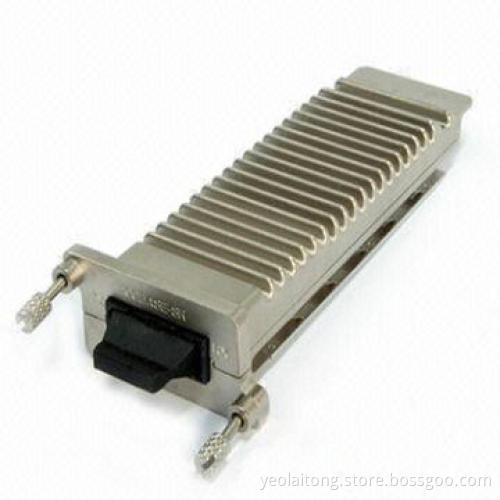

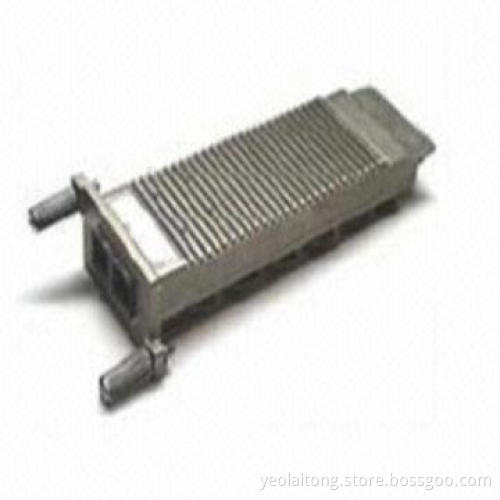

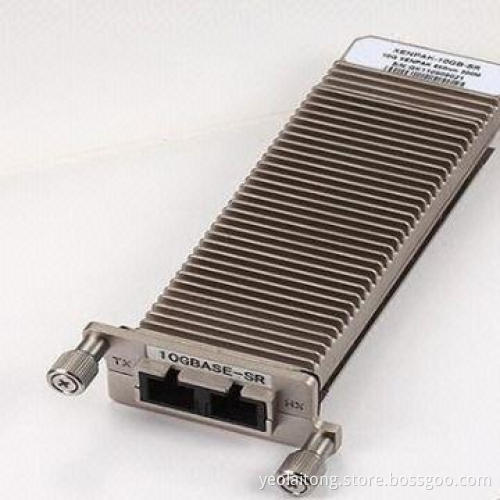

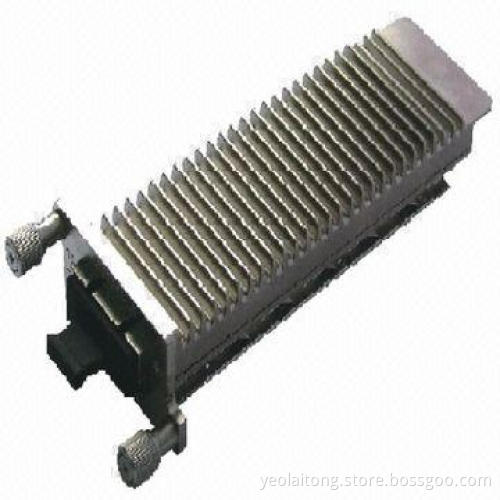

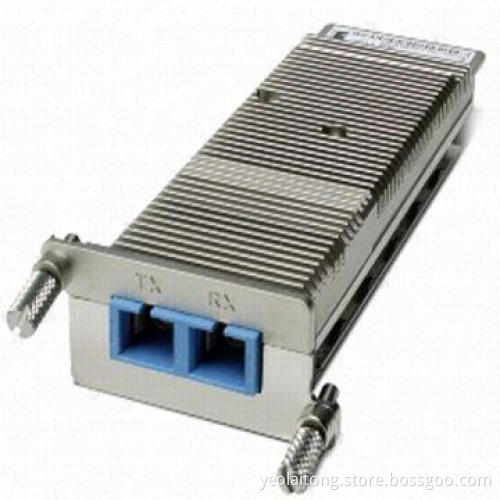

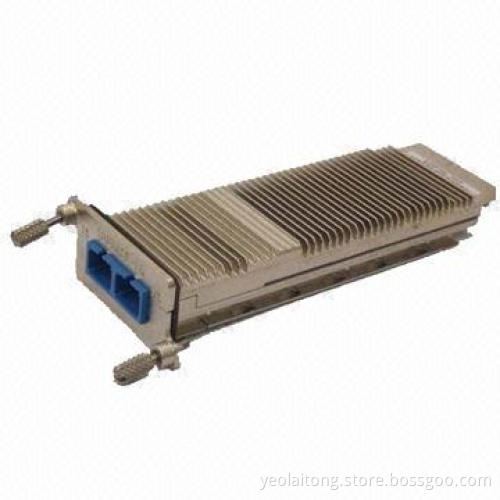

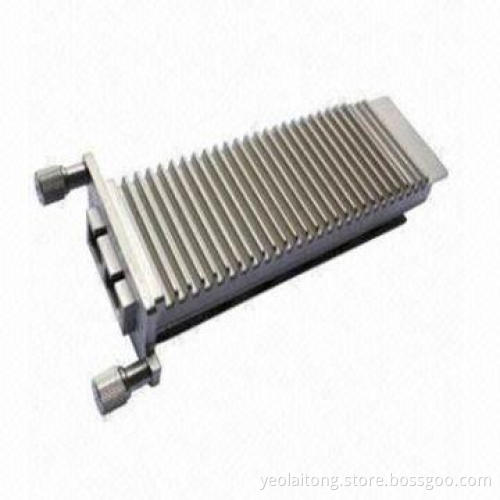

XENPAK-31192-LRD Xenpak SFP Module, Pin Photodetector

XENPAK-31192-LRD Xenpak SFP Module, Pin Photodetector

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

XAUI electrical interface: 4 lanes at 3.125Gbps
Hot Z-pluggable
SC-duplex optical receptacle
MDIO and DOM supported
Uncooled 1310Nm DFB
Pin photodetector
Operating case temperature: 0 to 70°C
Compliant to IEEE 802.3ae 10GBase-LR application
Compliant to Xenpak MSA

Reference

IEEE 802.3ae as 10GBase-LR, Xenpak MSA Release3.0

General description:

Roll balls 10Gbps Xenpak transceiver module RXENPAK-55192-LRD is hot pluggable in Z-direction module that is usable in typical router line card applications, storage, IP network and LAN and compliant to Xenpak MSA
RXENPAK-55192-LRD is fully integrated 10.3Gbps optical transceiver module that consists of 10.3Gbps optical transmitter and receiver, XAUI interface, mux and demux with clock and data recovery (CDR)
This version of product transceiver line uses uncooled 1310Nm DML laser diode to achieve 10km over standard single mode fiber as 10GBase-LR of IEEE 802.3ae

XAUI electrical interface: 4 lanes at 3.125Gbps

Hot Z-pluggable

SC-duplex optical receptacle

MDIO and DOM supported

Uncooled 1310Nm DFB

Pin photodetector

Operating case temperature: 0 to 70°C

Compliant to IEEE 802.3ae 10GBase-LR application

Compliant to Xenpak MSA

IEEE 802.3ae as 10GBase-LR, Xenpak MSA Release3.0

Roll balls 10Gbps Xenpak transceiver module RXENPAK-55192-LRD is hot pluggable in Z-direction module that is usable in typical router line card applications, storage, IP network and LAN and compliant to Xenpak MSA

RXENPAK-55192-LRD is fully integrated 10.3Gbps optical transceiver module that consists of 10.3Gbps optical transmitter and receiver, XAUI interface, mux and demux with clock and data recovery (CDR)

This version of product transceiver line uses uncooled 1310Nm DML laser diode to achieve 10km over standard single mode fiber as 10GBase-LR of IEEE 802.3ae
