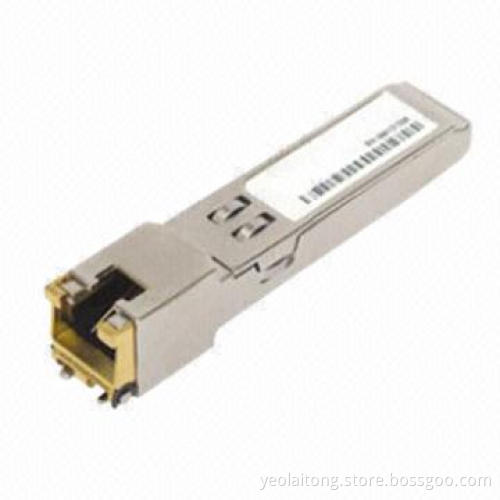

Copper SFP 10/100/1000M Transceiver, 100m Hot Pluggable, RJ45 Port

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Up to 1.25Gbps bidirectional data links
Hot-pluggable SFP footprint
Extended case temperature range (0 to +70°C)
Fully metallic enclosure for low EMI
Low power dissipation (1.05W typical)
Compact RJ45 connector assembly
Access to physical layer IC via 2-wire serial bus
1000 Base-T operation in host systems with SERDES interface
10/10/1000Mbps compliant in host systems with SGMII interface
Compliant with specifications for IEEE802.3Z
Compliant with Bellcore TA-NWT-000983
Eye safety designed to meet laser Class1, Compliant with IEC60825-1
RoHS Directive-compliant

Applications:

1.25 gigabit Ethernet over CAT 5 cable

Description:

High performance
Cost effective module compliant with Gigabit Ethernet and 1000Base-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data-rate up to 100 meters reach over unshielded twisted-pair category 5 cable
Module supports 1000Mbps full duplex data-links with 5-level pulse amplitude modulation (PAM) signals
All four pairs in cable are used with symbol rate at 250Mbps on each pair
Module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via 2 wire serial CMOS EEPROM protocol
Physical IC can also be accessed via 2 wire serial bus at address ACh pin diagram

Up to 1.25Gbps bidirectional data links

Hot-pluggable SFP footprint

Extended case temperature range (0 to +70°C)

Fully metallic enclosure for low EMI

Low power dissipation (1.05W typical)

Compact RJ45 connector assembly

Access to physical layer IC via 2-wire serial bus

1000 Base-T operation in host systems with SERDES interface

10/10/1000Mbps compliant in host systems with SGMII interface

Compliant with specifications for IEEE802.3Z

Compliant with Bellcore TA-NWT-000983

Eye safety designed to meet laser Class1, Compliant with IEC60825-1

RoHS Directive-compliant

1.25 gigabit Ethernet over CAT 5 cable

High performance

Cost effective module compliant with Gigabit Ethernet and 1000Base-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data-rate up to 100 meters reach over unshielded twisted-pair category 5 cable

Module supports 1000Mbps full duplex data-links with 5-level pulse amplitude modulation (PAM) signals

All four pairs in cable are used with symbol rate at 250Mbps on each pair

Module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via 2 wire serial CMOS EEPROM protocol

Physical IC can also be accessed via 2 wire serial bus at address ACh pin diagram
