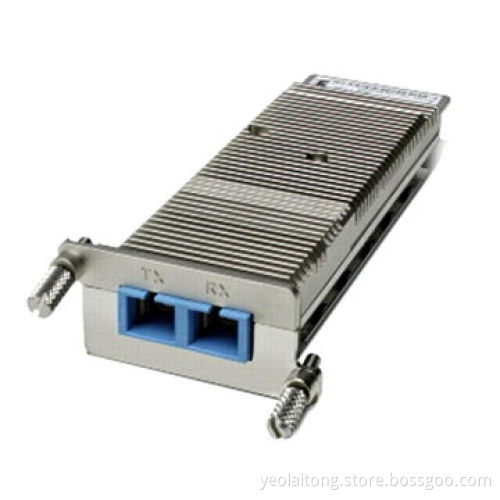

55192-ERD Xenpak Module

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

XAUI electrical interface: 4 Lanes @ 3.125Gbit/s
Hot Z-pluggable
SC-duplex optical receptacle
MDIO, DOM support
Cooled 1,550nm EML
APD photo-detector
Operating case temperature: 0 to 70 °C
Compliant to IEEE 802.3ae 10GBASE-ZR Application
Compliant to XENPAK MSA 3.0
Mechanical footprint (L x W x H): 4.76 x 1.42 x 0.46"

Reference:

IEEE 802.3ae as 10GBASE-ER, XENPAK MSA Release3.0

Descriptions:

General:
- 10Gb/s XENPAK transceiver module RXENPAK-55192-ERD is a hot pluggable in the Z-direction module that is usable in typical router line card applications, storage, IP network and LAN and compliant to XENPAK MSA. The RXENPAK-55192-ERD is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and Demux with clock and data recovery(CDR). This version of transceiver line uses an cooled 1550nm EML Laser Diode to achieve 40km over standard single mode fiber as 10GBASE-ER of the IEEE 802.3ae.

Performance specification:

Optical characteristics:
- Center wavelength (λC): 1,530, 1,550, 1,570 nm
- Signaling speed: 10.3125 Gbit/s
- Signaling speed variation from nominal: -100 - +100ppm
- Optical modulation amplitude (OMA): -2.1dBm
- Optical output power (Pf): -1

XAUI electrical interface: 4 Lanes @ 3.125Gbit/s

Hot Z-pluggable

SC-duplex optical receptacle

MDIO, DOM support

Cooled 1,550nm EML

APD photo-detector

Operating case temperature: 0 to 70 °C

Compliant to IEEE 802.3ae 10GBASE-ZR Application

Compliant to XENPAK MSA 3.0

Mechanical footprint (L x W x H): 4.76 x 1.42 x 0.46"

IEEE 802.3ae as 10GBASE-ER, XENPAK MSA Release3.0

General:

10Gb/s XENPAK transceiver module RXENPAK-55192-ERD is a hot pluggable in the Z-direction module that is usable in typical router line card applications, storage, IP network and LAN and compliant to XENPAK MSA. The RXENPAK-55192-ERD is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and Demux with clock and data recovery(CDR). This version of transceiver line uses an cooled 1550nm EML Laser Diode to achieve 40km over standard single mode fiber as 10GBASE-ER of the IEEE 802.3ae.

10Gb/s XENPAK transceiver module RXENPAK-55192-ERD is a hot pluggable in the Z-direction module that is usable in typical router line card applications, storage, IP network and LAN and compliant to XENPAK MSA. The RXENPAK-55192-ERD is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and Demux with clock and data recovery(CDR). This version of transceiver line uses an cooled 1550nm EML Laser Diode to achieve 40km over standard single mode fiber as 10GBASE-ER of the IEEE 802.3ae.

Optical characteristics:
