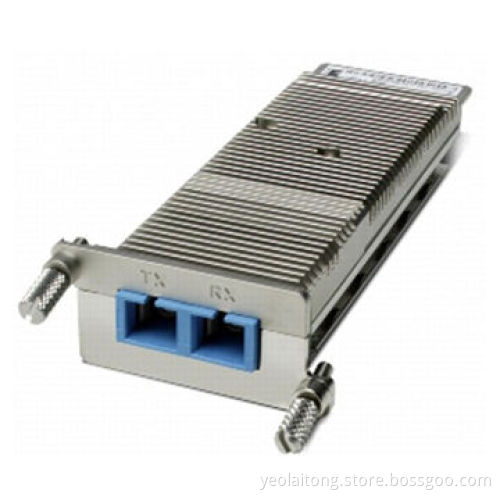

XENPAK-85192-SRD+XENPAK Module

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

XAUI electrical interface: 4 lanes at 3.125Gbit/s

Hot Z-Pluggable

SC-duplex optical receptacle

MDIO, DOM support

850nm Vcsel

Pin photo-detector

Operating case temperature: 0 to 70°C

Compliant to IEEE 802.3ae 10GBASE-SR application

Compliant to XENPAK MSA 3.0

Mechanical footprint: 4.76" L x 1.42: W x 0.46” H

Reference IEEE 802.3ae as 10GBASE-ER, XENPAK MSA Release3.0

Description general: 10Gb/s XENPAK transceiver module RXENPAK-85192-SRD is a hot pluggable in the Z-direction module that is usable in typical router line card applications, storage, IP network and LAN and compliant to XENPAK MSA

The RXENPAK-55192-SRD is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and Demux with clock and data recovery(CDR)

This version of transceiver line uses an 850nm Vcsel Laser Diode to achieve 300m over 50/125 multi-mode fiber as 10GBASE-SR of the IEEE 802.3ae

Performance specifications:

Optical characteristics table
Optical characteristics no + parameters + symbols + Min. typ. max
Unit remarks: 1 center wavelength λC 840 850 860nm
Signaling speed - 10.3125 - Gbit/s 3 signaling speed variation from nominal +-100 +- ++100+ppm 4 +optical output power +Pf +-7.3 +- +-1.3 +dBm + average 5 + side mode suppression ratio +Sr +30

Optical characteristics table

Optical characteristics no + parameters + symbols + Min. typ. max

Unit remarks: 1 center wavelength λC 840 850 860nm

Signaling speed - 10.3125 - Gbit/s 3 signaling speed variation from nominal +-100 +- ++100+ppm 4 +optical output power +Pf +-7.3 +- +-1.3 +dBm + average 5 + side mode suppression ratio +Sr +30
