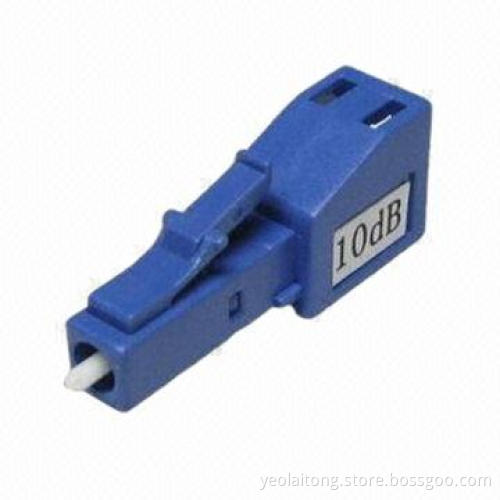

LC MF fiber-optic attenuator for video and CATV
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
Product Description
Product Description
- Telecommunication networks
- Data networks
- Video and CATV
- Bellcore compliant
- Wavelength Independent (DWDM)
- Durability (well over 100mw)
- Simple and reliable structure
- Operation wavelength
- SM: 1200 to 1600 or 1310/1550Nm
- MM: 850 and 1300Nm
- Return loss:
- ≥50dB (PC)
- ≥55dB (UPC)
- ≥65dB (APC)
- Attenuation accuracy:
- +/-0.5dB for 1 to 5dB attenuation
- +/-10% for 6 to 30dB attenuation
- Polarization dependent loss: ≤ 0.2dB
- Maximum optical input power: 200mW
- Operating temperature range: -40 to + 80°C
- Order options:
- Connector type
- FC
- PC
- UPC
- APC
- Wavelength
- 1310Nm
- 1550Nm
- 1310/1550Nm
- Attenuation: 1, 2, 3 and 25dB
- ≥50dB (PC)
- ≥55dB (UPC)
- ≥65dB (APC)
- +/-0.5dB for 1 to 5dB attenuation
- +/-10% for 6 to 30dB attenuation
- Polarization dependent loss: ≤ 0.2dB
- Maximum optical input power: 200mW
- Operating temperature range: -40 to + 80°C
- Connector type
- FC
- PC
- UPC
- APC
- 1310Nm
- 1550Nm
- 1310/1550Nm
