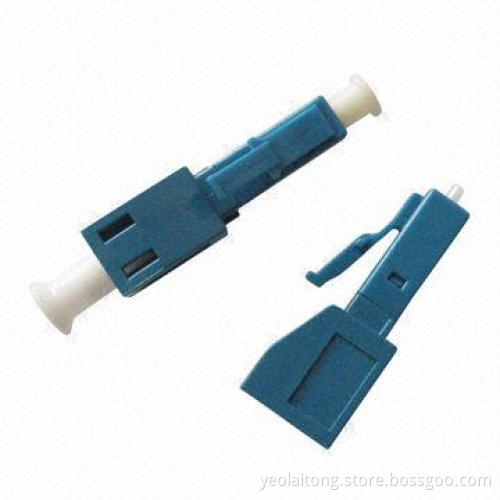

LC AMF fiber-optic attenuator
  • LC AMF fiber-optic attenuator
  • LC AMF fiber-optic attenuator
  • LC AMF fiber-optic attenuator
  • LC AMF fiber-optic attenuator
  • LC AMF fiber-optic attenuator
  • LC AMF fiber-optic attenuator
  • LC AMF fiber-optic attenuator
  • LC AMF fiber-optic attenuator
LC AMF fiber-optic attenuator
LC AMF fiber-optic attenuator
LC AMF fiber-optic attenuator
LC AMF fiber-optic attenuator
LC AMF fiber-optic attenuator
LC AMF fiber-optic attenuator
LC AMF fiber-optic attenuator
LC AMF fiber-optic attenuator

LC AMF fiber-optic attenuator

Get Latest Price
Payment Type:
T/T 100% in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T 100% in Advance
Product Description
Product Description
  • Applications:
    • Telecommunication networks
    • Data networks
    • Video and CATV
  • Features:
    • Bellcore compliant
    • Wavelength Independent (DWDM)
    •  Durability (well over 100mW)
    • Simple and reliable structure
  • Specifications:
    • Operating wavelength:
      • SM: 1200 to 1600 or 1310/1550nm
      • MM: 850 and 1300nm
    • Return loss:
      • ≥50dB (PC)
      • ≥55dB (UPC)
      • ≥65dB (APC)
    • Attenuation accuracy:
      • +/-0.5dB for 1 to 5dB attenuation
      • +/-10% for 6 to 30dB attenuation
      • Polarization dependent loss: ≤0.2dB
      • Maximum optical input power: 200mW
      • Operating temperature range: -40 to 80°C
    • Order options:
      •  Connector types:
        • APC
        • UPC
        • PC
        • FC
      • Wavelength:
        • 1,310nm
        • 1,550nm
        • 1,310/1,550nm
      • Attenuation: 1, 2, 3 and 25dB
  • Telecommunication networks
  • Data networks
  • Video and CATV
  • Bellcore compliant
  • Wavelength Independent (DWDM)
  •  Durability (well over 100mW)
  • Simple and reliable structure
  • Operating wavelength:
    • SM: 1200 to 1600 or 1310/1550nm
    • MM: 850 and 1300nm
  • Return loss:
    • ≥50dB (PC)
    • ≥55dB (UPC)
    • ≥65dB (APC)
  • Attenuation accuracy:
    • +/-0.5dB for 1 to 5dB attenuation
    • +/-10% for 6 to 30dB attenuation
    • Polarization dependent loss: ≤0.2dB
    • Maximum optical input power: 200mW
    • Operating temperature range: -40 to 80°C
  • Order options:
    •  Connector types:
      • APC
      • UPC
      • PC
      • FC
    • Wavelength:
      • 1,310nm
      • 1,550nm
      • 1,310/1,550nm
    • Attenuation: 1, 2, 3 and 25dB
  • SM: 1200 to 1600 or 1310/1550nm
  • MM: 850 and 1300nm
  • ≥50dB (PC)
  • ≥55dB (UPC)
  • ≥65dB (APC)
  • +/-0.5dB for 1 to 5dB attenuation
  • +/-10% for 6 to 30dB attenuation
  • Polarization dependent loss: ≤0.2dB
  • Maximum optical input power: 200mW
  • Operating temperature range: -40 to 80°C
  •  Connector types:
    • APC
    • UPC
    • PC
    • FC
  • Wavelength:
    • 1,310nm
    • 1,550nm
    • 1,310/1,550nm
  • Attenuation: 1, 2, 3 and 25dB
  • APC
  • UPC
  • PC
  • FC
  • 1,310nm
  • 1,550nm
  • 1,310/1,550nm
