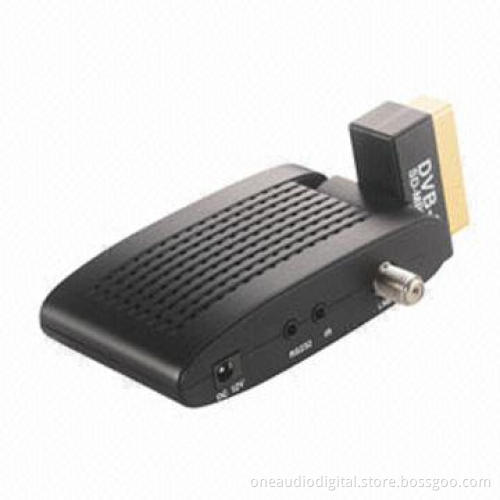

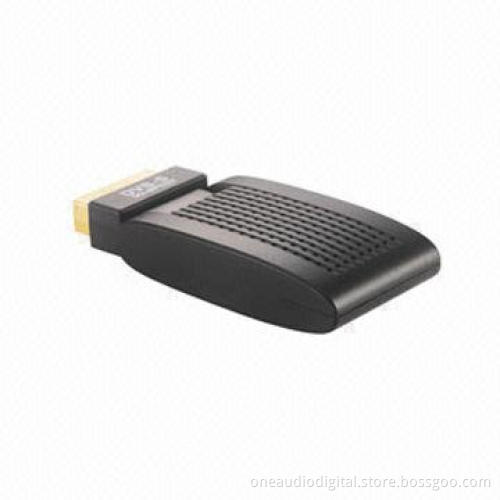

2013 Hot-selling Mini SCART DVB-s Digital Satellite Receiver

2013 Hot-selling Mini SCART DVB-s Digital Satellite Receiver

Get Latest Price

Payment Type:: T/T, Western Union, L/C or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, L/C or PayPal

Product Description

With Biss/CW

Three sets tooling for customer choice (A/B/C)

Without PVR function

Without media player and photo viewer function

Two direction rotatable head

Easy to assemble and disassemble

Exclusive right is welcome

Type: SD MPEG-2 DVB-S receiver

Solution: national chipset 6101D+AV2026

Software features:

MPEG2: SD MPEG2
PAL/NTSC: automatic PAL/NTSC conversion, PAL/NTSC video outputsupport
Channel number: 3000 channels TV and radio programmable
Favorites: 6 different favorite groups selection
OSD language: English, Russian, Turkish, Persian, Arabic,Portuguese and French
Channel search: automatic, manual and network search
Software upgrade: through RS232 port/over the air softwareupgrade support
Save channel: automatic save for last channel

Main chipset:

CPU frequency: 133MHz
Flash memory: 1pc, 8Mbit/1MByte
SDRAM memory: 1pc, 8 x 16Mbit/8Mbyte SDR
Demodulator IC: building in main chipset

DVB-S channel decoder:

Demod standard: DVB-S/MPEG-2 compliant (ETSI EN 302 307)
Demodulation: QPSK
FFT size: 2 to 8K
Code rate: 1/2, 2/3, 3/4, 5/6 and 7/8
Demultiplexer: MPEG2 ISO and IEC 13818-1
Input bit rate: maximum 60Mbit/s

Audio decoding:

Audio decode: MPEG1/2 ISO, IEC 13818-3 layer 1 and 2
Sound mode: left, right and stereo
Sampling frequency: 32, 44.1 and 48KHz

Electrical:

Input voltage: 175 to 250V AC, 50/60Hz
Consumption: maximum 8W
Temperature: 0 to 40°C
Humidity: d95%

MPEG2: SD MPEG2

PAL/NTSC: automatic PAL/NTSC conversion, PAL/NTSC video outputsupport

Channel number: 3000 channels TV and radio programmable

Favorites: 6 different favorite groups selection

OSD language: English, Russian, Turkish, Persian, Arabic,Portuguese and French

Channel search: automatic, manual and network search

Software upgrade: through RS232 port/over the air softwareupgrade support

Save channel: automatic save for last channel

CPU frequency: 133MHz

Flash memory: 1pc, 8Mbit/1MByte

SDRAM memory: 1pc, 8 x 16Mbit/8Mbyte SDR

Demodulator IC: building in main chipset

Demod standard: DVB-S/MPEG-2 compliant (ETSI EN 302 307)

Demodulation: QPSK

FFT size: 2 to 8K

Code rate: 1/2, 2/3, 3/4, 5/6 and 7/8

Demultiplexer: MPEG2 ISO and IEC 13818-1

Input bit rate: maximum 60Mbit/s

Audio decode: MPEG1/2 ISO, IEC 13818-3 layer 1 and 2

Sound mode: left, right and stereo

Sampling frequency: 32, 44.1 and 48KHz

Input voltage: 175 to 250V AC, 50/60Hz

Consumption: maximum 8W

Temperature: 0 to 40°C

Humidity: d95%
