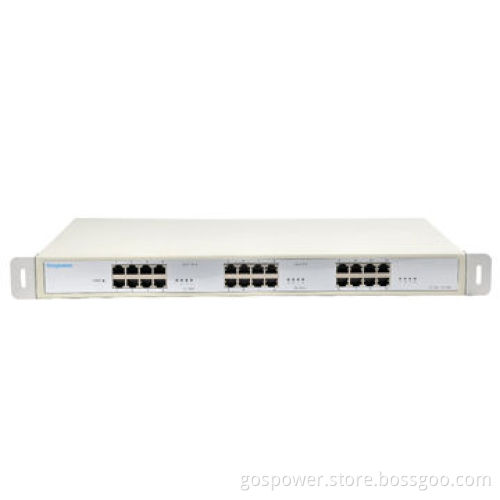

12-port Managed PoE Injector, High-inrush Current Stand Ability, High-immunity for Noise

12-port Managed PoE Injector, High-inrush Current Stand Ability, High-immunity for Noise

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Features:

Each port transfer 36W power （4, 5） + （7, 8）, used in AF/AT PoE applications

Each port with a Giga network transformer, high-immunity for noise

Independent over load, short-circuit protection for each port, auto-start when fault removed

High inrush current stand ability, optimized for large capacitor loading applications

Port forced power, adapt to standard PD and non standard PD applications, PD splitter is also provided

Clear LED　indication for each port, off for no loading, light for loading, flash for protection

Can power to 100m long distance applications

10/100M/1000Mbps compliance

RJ45 signal port surge protection, stand 10/700us surge up to 2kV DM and 6kV CM

Wide temperature range: -20 to 55°C

Temperature adjust fan or nature cooling (150W power) extend system lifetime

System reliability: MTBF >100,000 hours at 220V AC full loading 25°C

With CE and RE EN55022, class B marks

High efficiency power supply inside, 100 to 240V AC wide range input

High power factor due to PFC circuit

Power supply with input low-voltage and over-voltage, output over-voltage, over-temperature, output over-current, output short-circuit and more protections

Surge protection: power input port can stand 4kV DM and 5kV CM

The limited power of each port can be adjusted according to requirements
