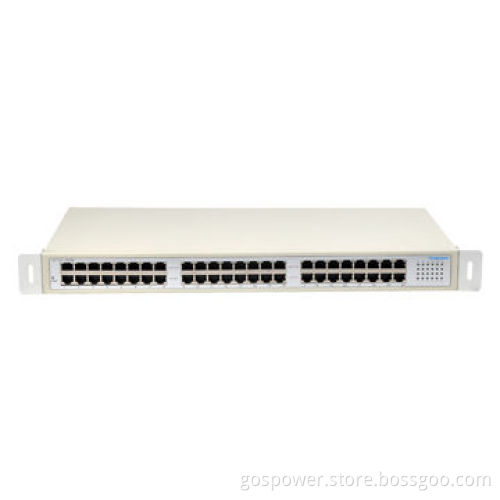

24 Ports PoE Managed Midspan Injector with Surge Protection for Ethernet Switch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Each port transfer 36W power (4, 5) +, (7, 8) -, used in AF/AT PoE application

Each port with a Giga network transformer, high-immunity for noise

Independent over load, short-circuit protection for each port, auto-start when fault removed

High-inrush current stand ability, optimized for large capacitor load application

Port forced power, adapt to standard PD and non-standard PD application, PD splitter is also provided

Clear LED　indication for each port, off for no load, light for loading, flash for protection

Can power to 100m long distance application

10/100/1,000Mbps compliance

RJ45 signal port surge protection, stand 10/700us surge up to 2kV DM and 6kV CM

Wide temperature range: -20 to 55°C

Temperate adjust fan or nature cooling (150W power) extend system life time

System reliability: MTBF>100,000 hours at 220V AC full load 25°C

With CE and RE EN55022, class B standards

High-efficiency power supply inside, 100 to 240V AC wide range input

High-power factor due to PFC circuit

Power supply with input low-voltage and over-voltage, output over-voltage, over-temperature, output over-current and output short-circuit protections

Surge protection: power input port can stand 4kV DM and 5kV CM

The limited power of each port can be adjusted according to requirement
