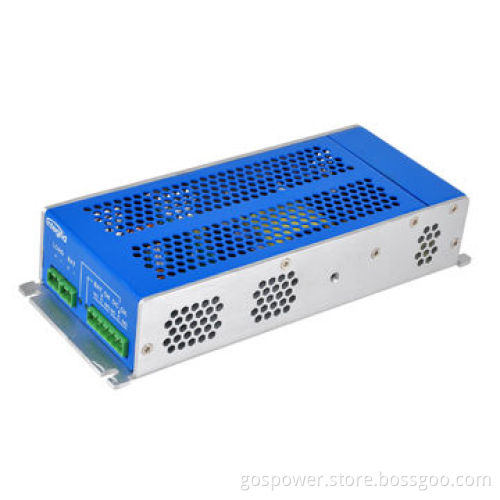

Power Supplier, 165W with 47 to 63Hz Frequency, OEM Orders Welcomed
  • Power Supplier, 165W with 47 to 63Hz Frequency, OEM Orders Welcomed
Power Supplier, 165W with 47 to 63Hz Frequency, OEM Orders Welcomed

Power Supplier, 165W with 47 to 63Hz Frequency, OEM Orders Welcomed

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Specifications:
    • Electrical:
      • Input voltages: 115 to 230V AC
      • Frequency range: 47 to 63Hz
      • Current: 3.5A (maximum)
      • Inrush current: d50Ap (220V AC)
      • Output voltages: 6.305 to 6.695V DC
      • Output current: load 8A + BAT 2A
      • Ripple and noise: d25mVp-p
      • Line regulation: ±3%
      • Total output: 19.2W
      • Power efficiency: e85%
      • Vin = 240V AC
      • Protections: OVP, SCP, current-limiting
    • Mechanical:
      • Dimensions: 230 x 93 x 46mm
      • Operating temperatures: 0 to 45
      • Storage temperatures: -20 to 80
      • Relative humidity range: 0 to 95% RH
      • Standards: EMI class B EN55022 EMS IEC61000-4-2,IEC61000-4-4
  • Electrical:
    • Input voltages: 115 to 230V AC
    • Frequency range: 47 to 63Hz
    • Current: 3.5A (maximum)
    • Inrush current: d50Ap (220V AC)
    • Output voltages: 6.305 to 6.695V DC
    • Output current: load 8A + BAT 2A
    • Ripple and noise: d25mVp-p
    • Line regulation: ±3%
    • Total output: 19.2W
    • Power efficiency: e85%
    • Vin = 240V AC
    • Protections: OVP, SCP, current-limiting
  • Mechanical:
    • Dimensions: 230 x 93 x 46mm
    • Operating temperatures: 0 to 45
    • Storage temperatures: -20 to 80
    • Relative humidity range: 0 to 95% RH
    • Standards: EMI class B EN55022 EMS IEC61000-4-2,IEC61000-4-4
  • Input voltages: 115 to 230V AC
  • Frequency range: 47 to 63Hz
  • Current: 3.5A (maximum)
  • Inrush current: d50Ap (220V AC)
  • Output voltages: 6.305 to 6.695V DC
  • Output current: load 8A + BAT 2A
  • Ripple and noise: d25mVp-p
  • Line regulation: ±3%
  • Total output: 19.2W
  • Power efficiency: e85%
  • Vin = 240V AC
  • Protections: OVP, SCP, current-limiting
  • Dimensions: 230 x 93 x 46mm
  • Operating temperatures: 0 to 45
  • Storage temperatures: -20 to 80
  • Relative humidity range: 0 to 95% RH
  • Standards: EMI class B EN55022 EMS IEC61000-4-2,IEC61000-4-4
