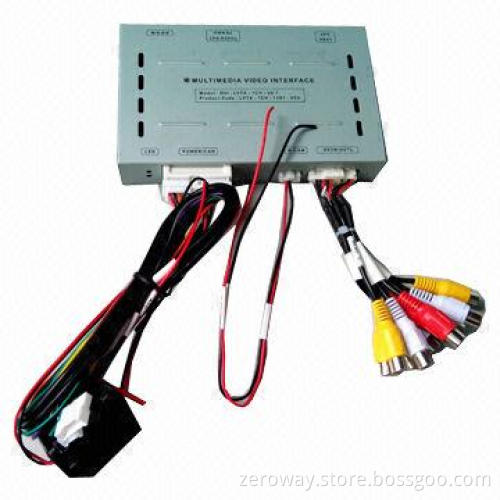

Auto Audio/Video Interface for Benz W221 2010 MAV-BZ10, 8-24V DC Input Power Supply
  • Auto Audio/Video Interface for Benz W221 2010 MAV-BZ10, 8-24V DC Input Power Supply
  • Auto Audio/Video Interface for Benz W221 2010 MAV-BZ10, 8-24V DC Input Power Supply
Auto Audio/Video Interface for Benz W221 2010 MAV-BZ10, 8-24V DC Input Power Supply
Auto Audio/Video Interface for Benz W221 2010 MAV-BZ10, 8-24V DC Input Power Supply

Auto Audio/Video Interface for Benz W221 2010 MAV-BZ10, 8-24V DC Input Power Supply

Get Latest Price
Payment Type:
Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Western Union, PayPal
Product Description
Product Description
  • Specification:
    • Input:
      • 2 x A/V input (external video source)
      • 1 x CVBS (rear camera) input (rear camera source)
      • 1 x CVBS (front camera) input, (front camera source)
      • 1 x analog RGB input (navigation system output)
      • 1 x LVDS input (car command system)
    • Output:
      • 2 x CVBS output (video out for installing headrest monitor)
      • 1 x audio L/R output
      • 1 x LCD output (LCD operating)
    • Power:
      • Input power: 8-24V DC
      • Consumption power: 12W (maximum)
    • Switch input modes:
      • Possible to select car model while switching mode by DIP S/W
      • By button on the commander in the car via CAN
  • Input:
    • 2 x A/V input (external video source)
    • 1 x CVBS (rear camera) input (rear camera source)
    • 1 x CVBS (front camera) input, (front camera source)
    • 1 x analog RGB input (navigation system output)
    • 1 x LVDS input (car command system)
  • Output:
    • 2 x CVBS output (video out for installing headrest monitor)
    • 1 x audio L/R output
    • 1 x LCD output (LCD operating)
  • Power:
    • Input power: 8-24V DC
    • Consumption power: 12W (maximum)
  • Switch input modes:
    • Possible to select car model while switching mode by DIP S/W
    • By button on the commander in the car via CAN
  • 2 x A/V input (external video source)
  • 1 x CVBS (rear camera) input (rear camera source)
  • 1 x CVBS (front camera) input, (front camera source)
  • 1 x analog RGB input (navigation system output)
  • 1 x LVDS input (car command system)
  • 2 x CVBS output (video out for installing headrest monitor)
  • 1 x audio L/R output
  • 1 x LCD output (LCD operating)
  • Input power: 8-24V DC
  • Consumption power: 12W (maximum)
  • Possible to select car model while switching mode by DIP S/W
  • By button on the commander in the car via CAN
