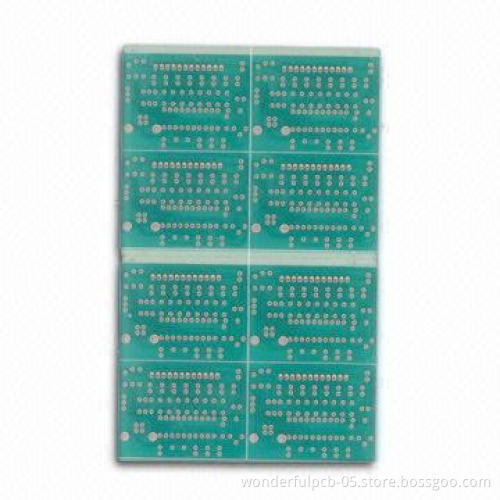

One-layer PCB with CEM-1 Material, 156.21 x 222.25mm, 10Pcs Panels, Blue Mask and White Legend

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Paypal

Product Description

Layer: single

Copper thickness: 1oz

Soldermask: blue

Silkscreen: white

Surface finish: HASL

Buried and blind hole: no

Application: gas detectors, remote controllers andtelecommunication products

Capability:

Layers: 1 to 28

Board finished thickness: 0.2 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free androgers

Max. finished board size: 580 x 900mm

Min. drilled hole size: 3mil (0.075mm)

Min. line width: 3mil (0.075mm)

Min. line spacing: 3mil (0.075mm)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP and goldplating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0µm (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13mm

Hole tolerance:

Approvals: UL pending, SGS and RoHS

Special requirements: buried and blind vias, controlledimpedance and BGA

Profiling: punching, routing, V-cut and beveling

PTH: ±0.076mm

NPTH: ±0.05mm
