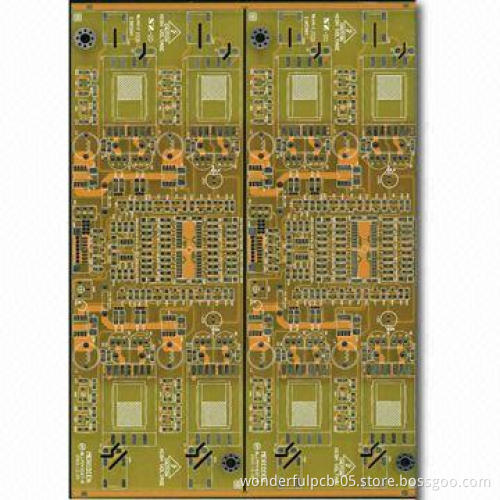

PCB/PWB, Electronic Circuit, Single Side, HASL Finish, 0.5 to 7.0oz Copper Thickness, UL-certified

Get Latest Price

Payment Type:: OA, DP, COD, CAD, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	OA, DP, COD, CAD, PayPal

Product Description

Specifications:

Board finished thickness: 0.2 to 7.0mm
Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free,rogers
Maximum finished board size: 23 x 25mm (580 x 900mm)
Minimum drilled hole size: 3 mils (0.075mm)
Minimum line width: 3 mils (0.075mm)
Minimum line spacing: 3 mils (0.075mm)
Copper thickness: 0.5 to 7.0oz
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0µm (>1 mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton
Shape tolerance: ±0.13
Hole tolerance:
- PTH: ±0.076
- NPTH: ±0.05
Certificate: UL
OEM services are provided

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Board finished thickness: 0.2 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free,rogers

Maximum finished board size: 23 x 25mm (580 x 900mm)

Minimum drilled hole size: 3 mils (0.075mm)

Minimum line width: 3 mils (0.075mm)

Minimum line spacing: 3 mils (0.075mm)

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0µm (>1 mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076
NPTH: ±0.05

Certificate: UL

OEM services are provided

PTH: ±0.076

NPTH: ±0.05
