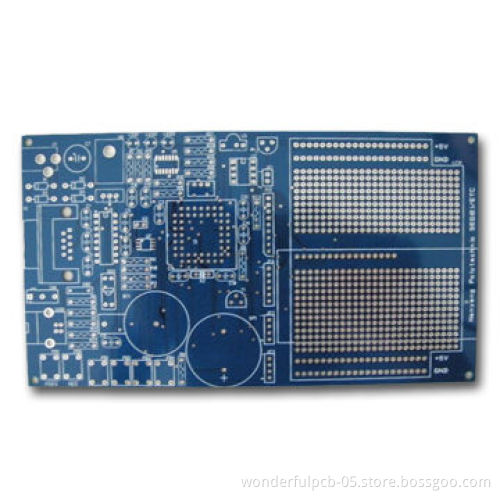

6-layer PCB with Blue Solder Mask, ±0.13 Sharp Tolerance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

2-28L PCB prototype and mass production

UL, ISO 14001, SGS, RoHS

Parts purchase

Layers: 1 to 28L

Board finished thickness: 0.2 to 7.0mm

Material: FR-4, CEM-1, CEM-3, high TG, FR4 Halogen free,rogers

Finished board size: 23 x 25mm (maximum) (580 x 900mm)

Drilled hole size: 3mil (0.075mm) (minimum)

Line width: 3mil (0.075mm) (minimum)

Line spacing: 3mil (0.075mm) (minimum)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold

Immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0 oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0µm (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance: PTH: ±0.076

NPTH: ±0.05

UL-, SGS-and RoHS-certified

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-cut, beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
