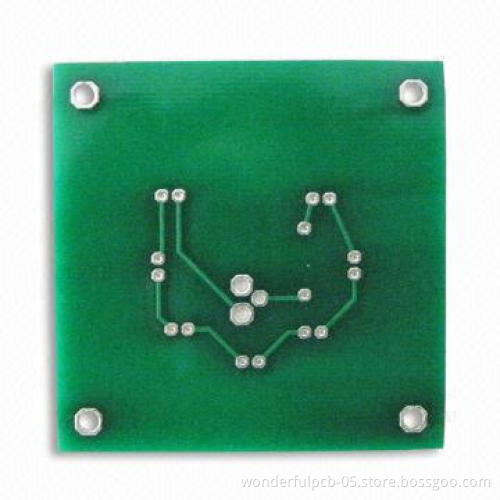

Double-sided PCB/PWB with 2/4/6L Layers and HASL/Gold/Silver Finishing

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	OA, DP, COD, CAD, T/T or PayPal

Product Description

Layers: 1 to 28L

Board finished thickness: 0.2 to 7.0mm

Materials: FR-4, CEM-1,CEM-3, high TG, FR4 halogen free andRogers

Finished board size: 23 x 25mm (580 x 900mm)

Drilled hole size: 3 mils (0.075mm)

Line width: 3 mils (0.075mm)

Line spacing: 3 mils (0.075mm)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask colors: green, yellow, black, white, red andblue

Copper thickness in hole: >25.0µm (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ± 0.13

Hole tolerance:

With UL and RoHS marks

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-cut and beveling

PTH: ± 0.076

NPTH: ± 0.05
