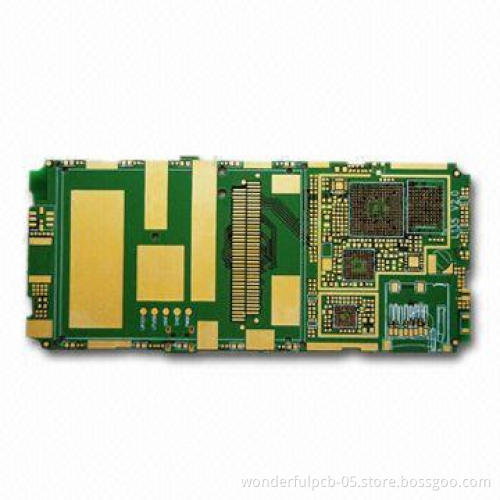

PCB/PWB with 3.2, 4.0, 5.0, 6.0mm Thickness, Made of FR4 Material, Heavier Tin-lead

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	OA, T/T, PayPal, L/C

Product Description

Layers: 1 to 28L

Board finished thickness: 0.2 to 7.0mm

Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers

Finished board size: 23 x 25 (580 x 900mm) (maximum)

Drilled hole size: 3mil (0.075mm) (minimum)

Line width: 3mil (0.075mm) (minimum)

Line spacing: 3mil (0.075mm) (minimum)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold-plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0µm (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

UL, SGS-certified, RoHS directive-compliant

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-cut, beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

PTH: ±0.076

NPTH: ±0.05
