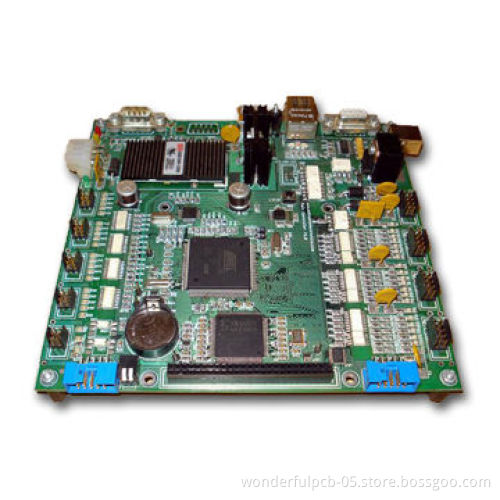

2-layer PCB Assembly Used for Home Appliances, FR-4, Surface Finish for HASL Lead Free
  • 2-layer PCB Assembly Used for Home Appliances, FR-4, Surface Finish for HASL Lead Free
2-layer PCB Assembly Used for Home Appliances, FR-4, Surface Finish for HASL Lead Free

2-layer PCB Assembly Used for Home Appliances, FR-4, Surface Finish for HASL Lead Free

Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • PCB board: 1.6mm thickness
  • Copper thickness: 1oz
  • FR-4, surface finish for HASL lead free
  • Layer: 1 to 28
  • Board finished thickness: 0.21 to 7.0mm
  • Material: FR-4, CEM-1, CEM-3, high-TG, FR4 halogen free, rogers
  • Finished board size: 23 x 25 (580 x 900mm)
  • Drilled hole size: 3mil (0.075mm)
  • Line width: 3mil (0.075mm)
  • Line spacing: 3mil (0.075mm) surface finish/treatment: HASL /HASL lead free, HAL, chemical tin, chemical gold, immersion silver/gold, OSP, gold plating
  • Copper thickness: 0.5 to 7.0oz
  • Solder mask color: green/yellow/black/white/red/blue
  • Copper thickness in hole: >25.0 um (>1 mil)
  • Inner packing: vacuum packing/plastic bag
  • Outer packing: standard carton packing
  • Shape tolerance: ±0.13
  • Hole tolerance: PTH: ±0.076 NPTH: ±0.05
  • Certificate: UL
  • Special requirements: buried and blind vias + controlled impedance + BGA
  • Profiling: punching, routing, v-cut, beveling
