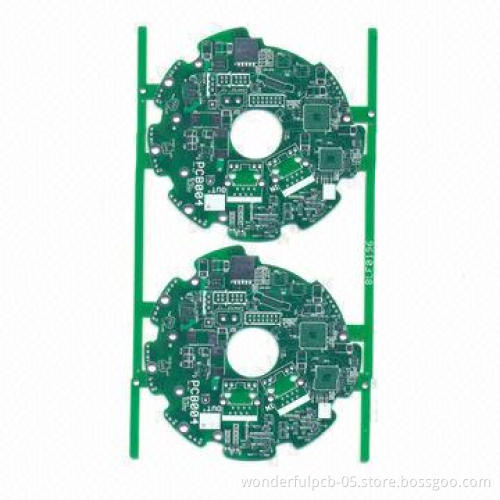

8 Layers PCB Board with 0.21 to 7.0mm Board Thickness and 0.5 to 7.0oz Copper Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Layers: 1 to 28
Board finished thickness: 0.21 to 7.0mm
Material: FR-4, CEM-1,CEM-3, high TG, FR4 halogen free androgers
Finished board dimensions: 23 x 25-inch (580 x 900mm)
Drilled hole size: 3-mil (0.075mm) (minimum)
Line width: 3-mil (0.075mm) (minimum)
Line spacing: 3-mil (0.075mm) (minimum)
Surface finish/treatments: HASL/HASL lead free, HAL, chemicaltin, chemical gold and immersion silver/gold, OSP, goldplating
Copper thickness: 0.5 to 7.0oz
Solder mask colors: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0um
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±0.13
Hole tolerance:
- PTH: ±0.076
- NPTH: ±0.05
Special requirements: buried and blind vias + controlledimpedance + BGA
Profiling: punching, routing, V-cut and beveling
OEM and ODM orders are welcome
