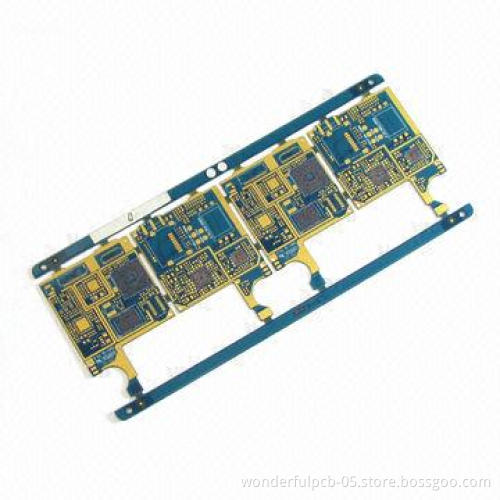

4-layer PCB for Electronic Players with Blue Solder Mask

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Material: FR4

With blue solder mask

Surface finish: ENIG

Copper thickness: 1oz

Layers: 4

Application: electronic players

Production capability:

Layers: 1 to 28
Board finished thickness: 0.2 to 7.0mm
Materials: FR-4, CEM-1,CEM-3, high TG, FR4 halogen free androgers
Maximum finished board size: 23 x 25-inch (580 x 900mm)
Minimum drilled hole size: 3mil (0.075mm)
Minimum line width: 3mil (0.075mm)
Minimum line spacing: 3mil (0.075mm)
Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP and goldplating
Copper thickness: 0.5 to 7.0oz
Solder mask colors: green, yellow, black, white, red andblue
Copper thickness in hole: >25.0μm (>1mil)
Shape tolerance: ±0.13
Hole tolerance:
- PTH: ±0.076
- NPTH: ±0.05
Special requirements: buried and blind vias + controlledimpedance + BGA
Profiling: punching, routing, V-cut and beveling
Certificates: UL, ISO9001, ISO14001, SGS and RoHS
Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
Packing:
- Inner: vacuum/plastic bag
- Outer: standard carton
