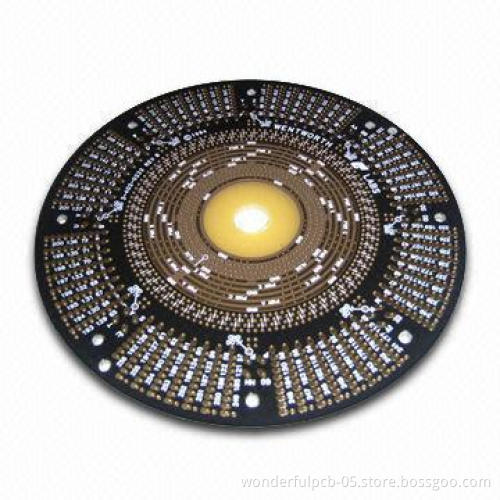

8-layered PCB Board with 30 Micro-inch with Gold Plated, Circuit Board, Multilayer PCB Assembly

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

30 micro-inch with gold plated

Board thickness: 1.6

Minimum hole size: 0.2

Minimum line width: 0.1

Copper thickness:

Inner: 3oz

Outer: 3.5oz

Minimum line spacing: 0.1

Surface finishing: HASL lead free

Color: yellow

Reference: our production capability for rigid PCB

Layer: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free andRoge

Size: 23 x 25 (580 x 900mm)

Minimum drilled hole size: 3-mil (0.075mm)

Minimum line width: 3-mil (0.075mm)

Minimum line spacing: 3-mil (0.075mm)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0Oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0um (>1-mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076

NPTH: ±0.05

Certificate: UL

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-Cut, beveling

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.
