FR4 Lead-free HASL Multilayer PCB with 1.5mm Board Thickness and Green Solder Mask

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

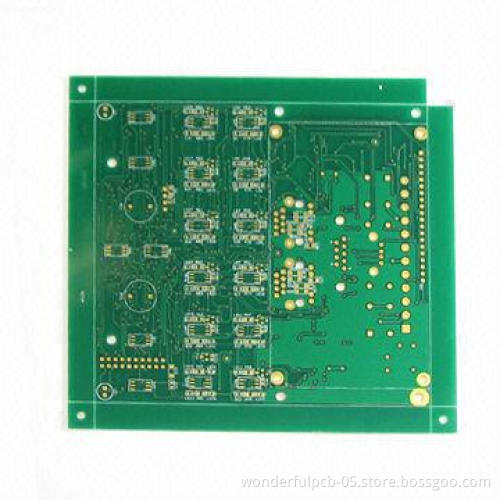

FR4 lead-free HASL multilayer PCB with 1.5mm board thickness,green solder mask

Base material: FR4

Number of layers: 4

Board thickness: 1.5mm

Surface treatment: lead-free HASL

Solder mask: green

Copper: 70 to 210m

Customized orders are acceptable

Widely applicable to fields such as telecommunications,aviation, automobiles, military, power, medical equipments,industrial controllers and computers

Capability:

Layer counts: 1 to 28
Board finished thickness: 0.21 to 7.0mm
Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free androgers
Max. finished board size: 580 x 900mm
Min. drilled hole size: 3mil (0.075mm)
Min. line width: 3mil (0.075mm)
Min. line spacing: 3mil (0.075mm)
Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP and goldplating
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0µm (>1mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±0.13mm
Hole tolerance:
- PTH: ±0.076mm
- NPTH: ±0.05mm
UL pending
Special requirements: buried and blind vias, controlledimpedance and BGA
Profiling: punching, routing, V-cut and beveling
