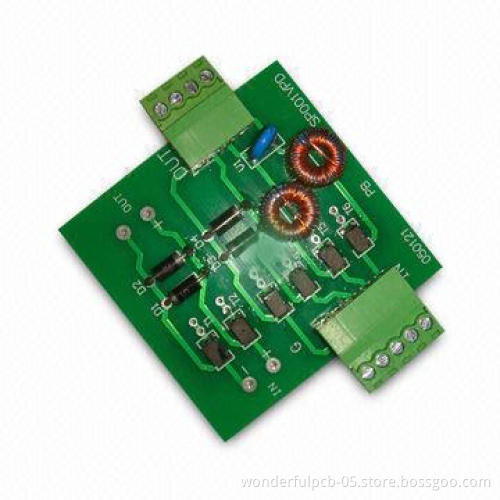

Multi-layered PCB Display, 176.12 x 26.36mm/4 Pieces Panel Size, HASL-LF Finish, 0.4mil Hole Size

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Panel size: 176.12 x 26.36mm/4 pieces

Layers: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,Rogers

Finished board size: 23 x 25cm (580 x 900mm) (minimum)

Drilled hole size: 3 mils (0.075mm) (minimum)

Line width: 3 mils (0.075mm) (minimum)

Line spacing: 3 mils (0.075mm) (minimum)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0um (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ± 0.13

Hole tolerance:

Certificate: UL mark

Special requirements: buried and blind via + controlledimpedance + BGA

Profiling: punching, routing, V-cut, beveling

PTH: ± 0.076

NPTH: ± 0.05
