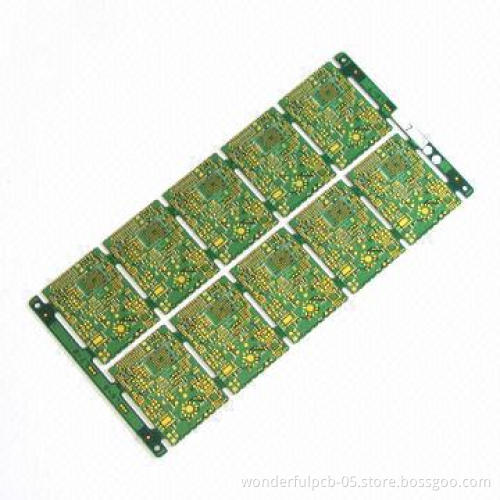

Double PCB for Remote Controls with 2oz Copper Thickness
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
---|
Product Description
Product Description
- Material: FR-4
- Layer: 2
- Copper thickness: 2oz
- Soldermask: green
- Silkscreen: white
- Surface finishing: ENIG
- Buried and blind hole: no
- Application: gas detector, remote control, telecommunicationproducts
- Reference our production capability for rigid PCB:
- Layers: 1-28
- Board finished thickness: 0.2-7.0mm
- Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers
- Maximum finished board size: 23 x 25 (580 x 900mm)
- Minimum drilled hole size: 3mil (0.075mm)
- Minimum line width: 3mil (0.075mm)
- Minimum line spacing: 3mil (0.075mm)
- Surface finishing/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold
- Immersion silver/gold, OSP, gold plating
- Copper thickness: 0.5-7.0oz
- Solder mask color: green/yellow/black/white/red/blue
- Copper thickness in hole: >25.0µm (>1mil)
- Inner packing: vacuum packing/plastic bag
- Outer packing: standard carton packing
- Shape tolerance: ±0.13
- Hole tolerance:
- PTH: ±0.076
- NPTH: ±0.05
- Certificates: UL, SGS, RoHS
- Special requirements: buried and blind vias + controlledimpedance + BGA
- Profiling: punching, routing, V-CUT, beveling
- Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
- Layers: 1-28
- Board finished thickness: 0.2-7.0mm
- Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers
- Maximum finished board size: 23 x 25 (580 x 900mm)
- Minimum drilled hole size: 3mil (0.075mm)
- Minimum line width: 3mil (0.075mm)
- Minimum line spacing: 3mil (0.075mm)
- PTH: ±0.076
- NPTH: ±0.05
