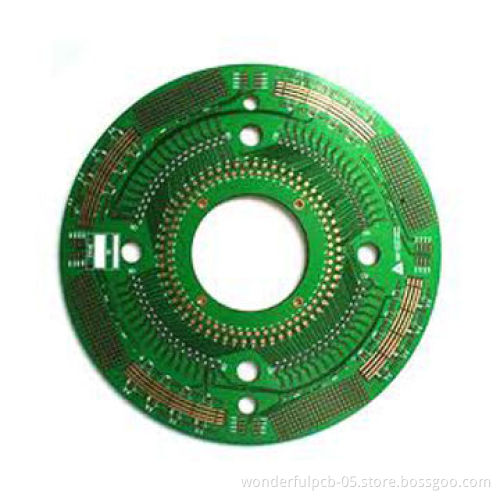

Double-sided PCB for LEDs, with1.6mm FR4 Material, 1oz Copper and HASL Lead-free Surface Treatment
  • Double-sided PCB for LEDs, with1.6mm FR4 Material, 1oz Copper and HASL Lead-free Surface Treatment
Double-sided PCB for LEDs, with1.6mm FR4 Material, 1oz Copper and HASL Lead-free Surface Treatment

Double-sided PCB for LEDs, with1.6mm FR4 Material, 1oz Copper and HASL Lead-free Surface Treatment

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Double-sided PCB for LED
  • Board thickness: 1.6mm
  • Copper thickness: 1oz
  • Available layers: 1 to 28
  • Board finished thickness range: 0.2 to 7.0mm
  • Material: FR-4, CEM-1,CEM-3, high TG, FR4 halogen-free androgers
  • Maximum finished board size: 23 × 25 (580 x 900mm)
  • Minimum drilled hole size: 3mil (0.075mm)
  • Minimum line width: 3mil (0.075mm)
  • Minimum line spacing: 3mil (0.075mm)
  • Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver, gold and OSP
  • Copper thickness range: 0.5 to 7.0oz
  • Solder mask color: green, yellow, black, white, red andblue
  • Copper thickness in hole: >25.0µm (>1mil)
  • Inner packing: vacuum packing/plastic bag
  • Outer packing: standard carton packing
  • Shape tolerance: ±0.13
  • Hole tolerance:
    • PTH: ±0.076
    • NPTH: ±0.05
  • With UL, SGS and RoHS marks
  • Special requirements: buried and blind vias + controlledimpedance + BGA
  • Profiling: punching, routing, V-CUT and beveling
  • OEM services are provided
  • PTH: ±0.076
  • NPTH: ±0.05
