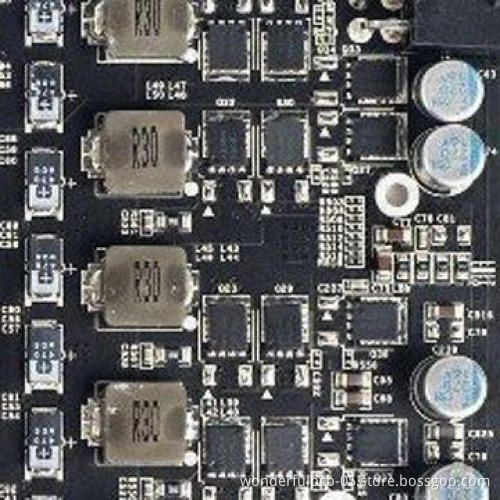

Double-layered PCB Panel with Black Solder Mask and ±0.13 Hole Tolerance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,Rogers

Thick gold plating PCB with overall thickness of 1.6 to3.2mm

Our production capability for rigid PCB:

Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver, gold, OSP and goldplating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0um (>1 mil)

Shape tolerance: ±0.13

Hole tolerance:

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-cut, and beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

Packing:

Layer: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Finished board size: 23 x 25 (580 x 900mm) (maximum)

Drilled hole size: 3 mils (0.075mm) (maximum)

Line width: 3 mils (0.075mm) (maximum)

Line spacing: 3 mils (0.075mm) (maximum)

PTH: ±0.076

NPTH: ±0.05

Inner: vacuum packing/plastic bag

Outer: standard carton packing
